Stereomaster Radiogram 2402

Stereomaster Radiogram 2402; His Master's Voice (ID = 2293697) Radio

Stereomaster Radiogram 2402; His Master's Voice (ID = 2293698) Radio

Stereomaster Radiogram 2402; His Master's Voice (ID = 2293699) Radio

Stereomaster Radiogram 2402; His Master's Voice (ID = 2293700) Radio
Stereomaster Radiogram 2402; His Master's Voice (ID = 2352374) Radio Stereomaster Radiogram 2402; His Master's Voice (ID = 2352375) Radio
Stereomaster Radiogram 2402; His Master's Voice (ID = 2352377) Radio
Use red slider bar for more.
Stereomaster Radiogram 2402; His Master's Voice (ID = 2352374) Radio
His Master's Voice: Stereomaster Radiogram 2402 [Radio] ID = 2352374 933x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereomaster Radiogram 2402, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB:
Ebay UK auction item 163498138418 seller steveg54a

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1969 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 26: BF160 BF160 AF116 AF116 AF116 2N4062 U3540/1 2N4062 BC119 AD162 AD161 2N4062 U3540/1 2N4062 BC119 AD162 AD161 AD143 AC138 AC138 D1422 MPS6522 or. MPS6523 U3540/1 U3540/1 U3540/1 AC154
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker 4 Loudspeakers
Power out 14 W (unknown quality)
from Radiomuseum.org Model: Stereomaster Radiogram 2402 - His Master's Voice Masters,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

2 x 6.5 inch loudspeakers and 2 x 3.5 inch tweeters. BSR MA70 autochanger and FM stereo decoder.  See also the HMV 2401 Stereomaster which has no FM stereo decoder.

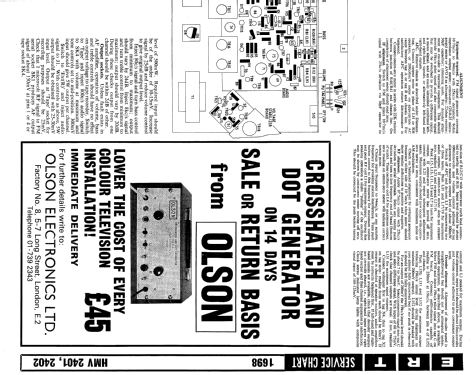

Literature/Schematics (1) ERT Service Chart 1698 June 5 1969

Model page created by Howard Craven. See "Data change" for further contributors.
