Tropicana JD-1F Ch= JD

Tropicana JD-1F Ch= JD; His Master's Voice (ID = 1437163) Radio

Tropicana JD-1F Ch= JD; His Master's Voice (ID = 1437164) Radio
Tropicana JD-1F Ch= JD; His Master's Voice (ID = 680224) Radio Tropicana JD-1F Ch= JD; His Master's Voice (ID = 680223) Radio
Tropicana JD-1F Ch= JD; His Master's Voice (ID = 680226) Radio
Use red slider bar for more.
Tropicana JD-1F Ch= JD; His Master's Voice (ID = 680224) Radio

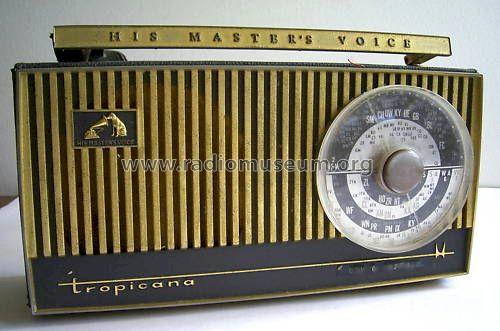

His Master's Voice: Tropicana JD-1F Ch= JD [Radio] ID = 680224 500x331
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tropicana JD-1F Ch= JD, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:
Ebay AUS auction 200396156675

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1965–1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: SE1002 SE1002 SE1002 SE1002 AC127 AC132 OA90 OA90
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 15 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Tropicana JD-1F Ch= JD - His Master's Voice HMV, H.M.V.
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 115 x 0 mm / 9.3 x 4.5 x 0 inch
Notes

HMV Tropicana;

This model is more upmarket to its sibling, the Sprite. The first four transistors are silicon rather than the germanium used in the Sprite with the JA chassis.The fascia is cast aluminium compared with the plastic used in the Sprite.

The radio may include an earphone socket with a 47R resistor in series with the earphone. The supplied earphone has a DC resistance of 15R.

Weight is without battery (Eveready No. 2510 or similar).

Colours available in Red, Charcoal & Tan.

Price after the introduction of decimal currency in Australia (14/2/1966) was $50.40

See also later version, JD-1Q, with silver fascia.

Net weight (2.2 lb = 1 kg) 3 lb 7.3 oz (3.456 lb) / 1.569 kg
Price in first year of sale 25.20 AUS £
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Chassis Type JD, March 1965.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Group C2, 1965, Page H41.)

Model page created by a member from A. See "Data change" for further contributors.
