Windsor P1-A7 Ch= P1
His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
- Country
- Australia
- Manufacturer / Brand
- His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
- Year
- 1961
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 296562
Model Data Sheet.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Windsor P1-A7 Ch= P1 - His Master's Voice HMV, H.M.V.
- Shape
- Console with any shape - in general
- Notes
-
Cabinet finishes available in Maple, Walnut & Rosewood.
- Price in first year of sale
- 198.45 AUS £
- Literature/Schematics (1)

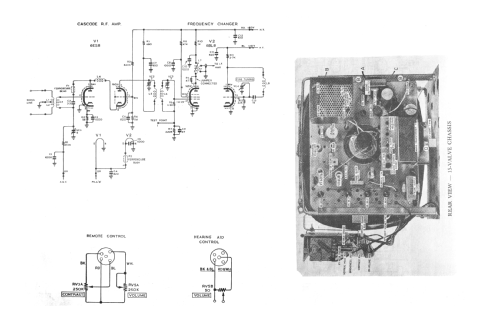

- - - Manufacturers Literature (HMV Service Manual for TV Receiver Chassis Types M3, M4, M5, M6, M7, P1, P2, P5, P6, P7 & P8.)
- Literature/Schematics (2)

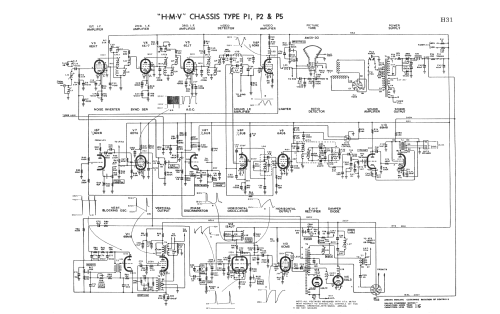

- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962, Page H31.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
