Windsor Super Fringe Rangemaster V2-AH Ch= V2
His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
- Country
- Australia
- Manufacturer / Brand
- His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
- Year
- 1965
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 293981

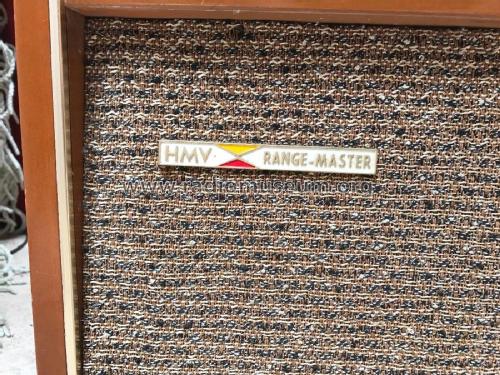

From eBay seller ulr8247. Item 232652099494.
From eBay seller ulr8247. Item 232652099494.
From eBay seller ulr8247. Item 232652099494.
From eBay seller ulr8247. Item 232652099494.
- Number of Tubes
- 14
- Number of Transistors
- Semiconductors
- SE1001 SE1001 OA90 OA90 OA210 OA210 M3 AA119 AA119 AA119 BA100 BA100 or. AB1101 BA100 or. AB1101
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 240-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Windsor Super Fringe Rangemaster V2-AH Ch= V2 - His Master's Voice HMV, H.M.V.
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 30 x 30 x 17 inch / 762 x 762 x 432 mm
- Notes
-
This 25" TV is the fringe reception version of model Windsor V!-AH.
Cabinet finishes available in Maple, Walnut & Rosewood.
- Price in first year of sale
- 208.95 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (HMV Service Manual Chassis Types, PW & V2, August 1965.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (Group 7-17, February 1966, Page H42.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
