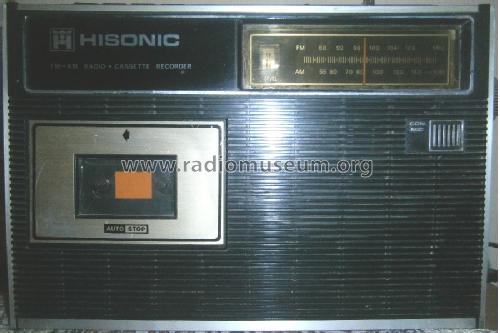

AM-FM RAdio Tape Recorder TR-4000

Hisonic; (where?)

  • Year
  • 1975 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 217654

 Technical Specifications

  • Number of Transistors
  • 13
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage

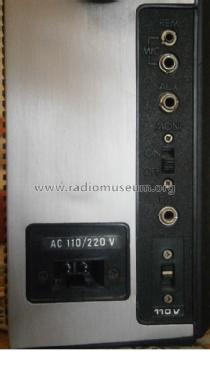

  • Line / Batteries (any type) / 110; 220 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
  • Power out
  • 2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AM-FM RAdio Tape Recorder TR-4000 - Hisonic; where?
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 320 x 250 x 80 mm / 12.6 x 9.8 x 3.1 inch
  • Notes
  • Hisonic Corp., Electronic circuit contains 13 transistors and 14 diodes. Level meter.
  • Net weight (2.2 lb = 1 kg)
  • 1.7 kg / 3 lb 11.9 oz (3.744 lb)
  • Author
  • Model page created by Matthew Xenakis. See "Data change" for further contributors.
