4 Band Radio Cassette Recorder TRK-5330E

Hitachi Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1979 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 317484
    • alternative name: Hitachi Sales Corp. of America

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 220 or 240 / DC 9 / D: 6 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 5 inch = 12.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

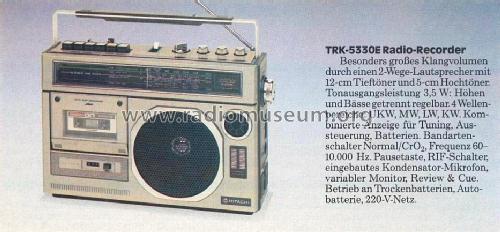

  • Model: 4 Band Radio Cassette Recorder TRK-5330E - Hitachi Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 345 x 232 x 104 mm / 13.6 x 9.1 x 4.1 inch
  • Notes

  • The model TRK-5330E was sold for two different mains voltages, 220 or 240V
    The actual voltage is molded at the back panel.

    See also Hitachi 2-band AM/FM TRK-5330H for mains operation at 60Hz, 120V

    Made in Singapore.
