AM-FM Stereo Tuner Amplifier HTA-5000

AM-FM Stereo Tuner Amplifier HTA-5000; Hitachi Ltd.; Tokyo (ID = 1716289) Radio
Use red slider bar for more.
AM-FM Stereo Tuner Amplifier HTA-5000; Hitachi Ltd.; Tokyo (ID = 1716289) Radio

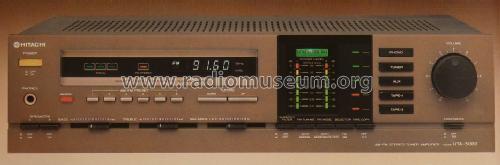

Hitachi Ltd.; Tokyo: AM-FM Stereo Tuner Amplifier HTA-5000 [Radio] ID = 1716289 933x308
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-FM Stereo Tuner Amplifier HTA-5000, Hitachi Ltd.; Tokyo:
aus Hitachi HiFi Prospekt 1981/82

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 120-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 90 W (undistorted)
from Radiomuseum.org Model: AM-FM Stereo Tuner Amplifier HTA-5000 - Hitachi Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 110 x 363 mm / 17.1 x 4.3 x 14.3 inch
Notes Hitachi AM-FM Stereo Tuner Amplifier Model HTA-5000.
Quartz Digital Synthesized Tuning System, 6 AM-FM presets.
Subsonic Filter, Loudness on/off, Bass- and Treble-Controls.
Inputs Phono, AUX, Tape1, Tape2
Speakers, A, B, A+B.
Power Consumption 220 watts.
Front silver.
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Mentioned in Hitachi Hifi Prospekt 1981/82

Model page created by Franz Scharner. See "Data change" for further contributors.
