Auto-Radio TM-816U

Auto-Radio TM-816U; Hitachi Ltd.; Tokyo (ID = 1684349) Radio
Auto-Radio TM-816U; Hitachi Ltd.; Tokyo (ID = 1851121) Radio Auto-Radio TM-816U; Hitachi Ltd.; Tokyo (ID = 1268034) Radio
Auto-Radio TM-816U; Hitachi Ltd.; Tokyo (ID = 1850749) Radio Auto-Radio TM-816U; Hitachi Ltd.; Tokyo (ID = 1850750) Radio
Auto-Radio TM-816U; Hitachi Ltd.; Tokyo (ID = 1851120) Radio Auto-Radio TM-816U; Hitachi Ltd.; Tokyo (ID = 1851122) Radio
Auto-Radio TM-816U; Hitachi Ltd.; Tokyo (ID = 2004119) Radio
Use red slider bar for more.
Auto-Radio TM-816U; Hitachi Ltd.; Tokyo (ID = 1851121) Radio
Hitachi Ltd.; Tokyo: Auto-Radio TM-816U [Radio] ID = 1851121 933x609
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auto-Radio TM-816U, Hitachi Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA355 2SA354 2SA12 2SA12 2SB75 2SB77 2SB89 2SB89 HV16 1N34A 1N34A
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / DC 6; 12 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Auto-Radio TM-816U - Hitachi Ltd.; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.38 x 1.88 x 4.75 inch / 162 x 48 x 121 mm
Notes

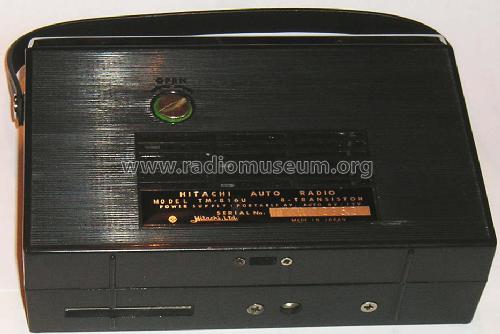

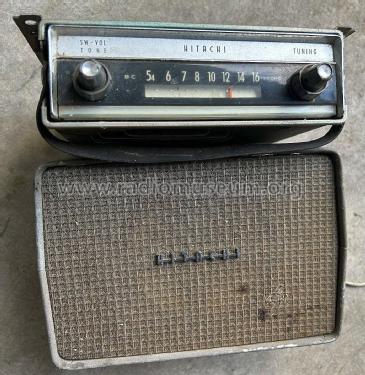

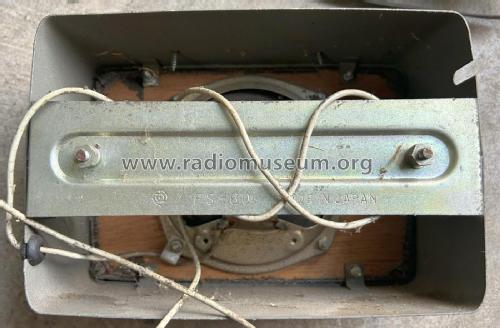

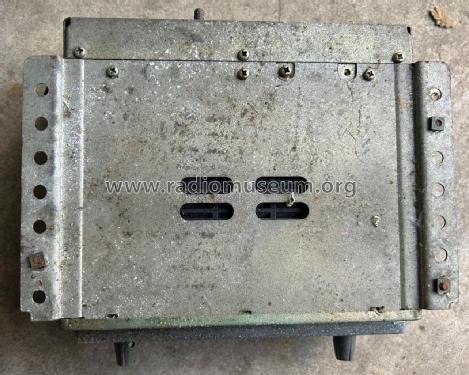

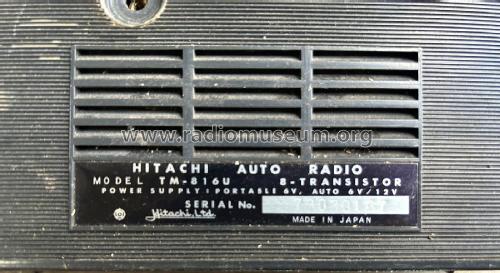

This is a portable radio that could be used as a car radio by inserting it into a special under-dash cradle. It could be used in vehicles with 6 or 12 volt electrical systems, positive or negative ground.  When used as a car radio, the output power increases to 300 mW (6V) and 500 mW (12V).  An external speaker, model ES-60, was supplied for installation in the car.

The brand in the front may be Hitachi or Belmont.

Net weight (2.2 lb = 1 kg) 1.75 lb (1 lb 12 oz) / 0.795 kg
Source of data - - Manufacturers Literature
Literature/Schematics (1) -- Original prospect or advert (De Kampioen, April 1966)

Model page created by Stuart Irwin. See "Data change" for further contributors.
