Cassette Tape Recorder TRQ-225

Cassette Tape Recorder TRQ-225; Hitachi Ltd.; Tokyo (ID = 921406) R-Player

Cassette Tape Recorder TRQ-225; Hitachi Ltd.; Tokyo (ID = 921408) R-Player
Cassette Tape Recorder TRQ-225; Hitachi Ltd.; Tokyo (ID = 118059) R-Player Cassette Tape Recorder TRQ-225; Hitachi Ltd.; Tokyo (ID = 118060) R-Player
Cassette Tape Recorder TRQ-225; Hitachi Ltd.; Tokyo (ID = 492409) R-Player
Use red slider bar for more.
Cassette Tape Recorder TRQ-225; Hitachi Ltd.; Tokyo (ID = 118059) R-Player
Hitachi Ltd.; Tokyo: Cassette Tape Recorder TRQ-225 [R-Player] ID = 118059 525x700

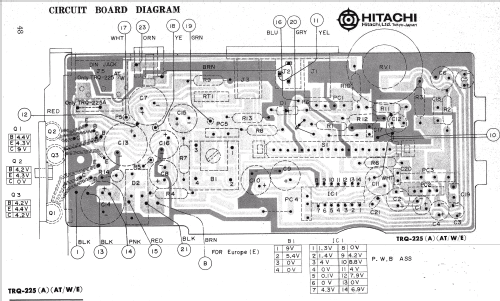

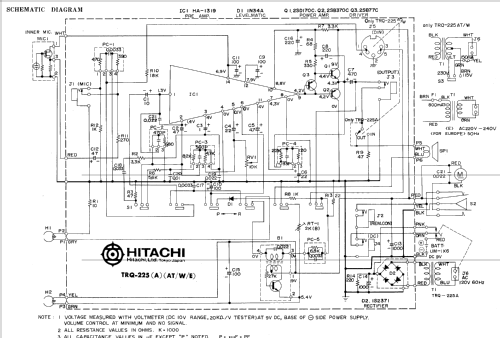

Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette Tape Recorder TRQ-225, Hitachi Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1973 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220, 240 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Cassette Tape Recorder TRQ-225 - Hitachi Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 255 x 290 x 75 mm / 10 x 11.4 x 3 inch
Notes Mono-Cassetten-Recorder, Gehäusefarben: Pop-Rot, Pop-Orange, Dezent-Weiss. An der Rückseite Lagerfach für Reserve-Cassette. Frequenzgang: 100-10000Hz. Eingebautes Mikrofon, Levelmatic, Auto-Stop. 4 Transistoren, 1 IC, 2 Dioden.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Source of data -- Original prospect or advert

Model page created by Peter Böhm. See "Data change" for further contributors.
