Cassette Tape Recorder Levelmatic TRQ-258R

• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1977 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 238275

• • alternative name: Hitachi Sales Corp. of America

• Picture

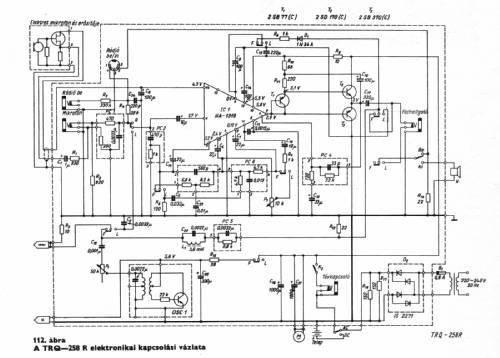

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• HA1319 2SB77 2SD170 2SB370 unknown_tr

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 115-230 / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cassette Tape Recorder Levelmatic TRQ-258R - Hitachi Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 135 x 68 mm / 9.8 x 5.3 x 2.7 inch

• Notes

• Hitachi Cassette Tape Recorder TRQ-258R. Auto-Stop. Built-in condenser mic.

  Power consumption in AC mode: 5 W.
  Made in Japan.

• Net weight (2.2 lb = 1 kg)
• 1.746 kg / 3 lb 13.5 oz (3.846 lb)

• Author
• Model page created by José Pinto. See "Data change" for further contributors.
