CX-W700

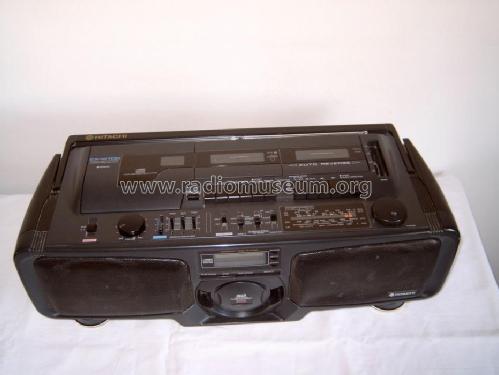

CX-W700; Hitachi Ltd.; Tokyo (ID = 104566) Radio CX-W700; Hitachi Ltd.; Tokyo (ID = 104567) Radio
CX-W700; Hitachi Ltd.; Tokyo (ID = 104568) Radio
Use red slider bar for more.

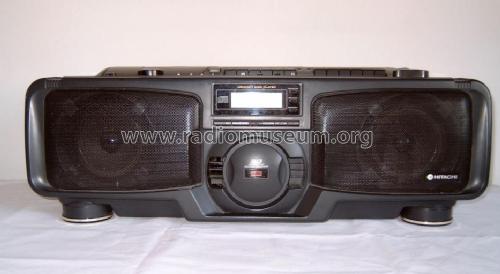

CX-W700; Hitachi Ltd.; Tokyo (ID = 104566) Radio
Hitachi Ltd.; Tokyo: CX-W700 [Radio] ID = 104566 933x513
Select picture or schematic to display from thumbnails on the right and click for download.
For model CX-W700, Hitachi Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1985–1987 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Other Combination - see Notes
Power type and voltage Line / Batteries (any type) / 220, 8x1,5 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: CX-W700 - Hitachi Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 625 x 220 x 250 mm / 24.6 x 8.7 x 9.8 inch
Notes Tragbarer 4 Band Radio-CD-Kasettenrekorder. "3-Dimension Super Bass Sound", "Dubbing Speed". Plate: "Made in Singapore".
Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
