Electronic Clock Radio KC-670E
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1977 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 246925
-
- alternative name: Hitachi Sales Corp. of America

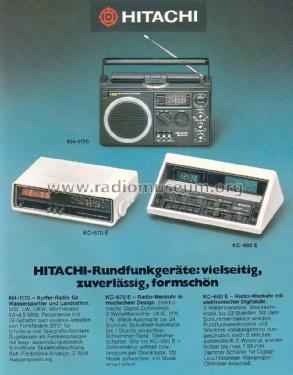

Hitachi Katalog 1977 - Seite 27
Hitachi Katalog 1977 - Seite 27

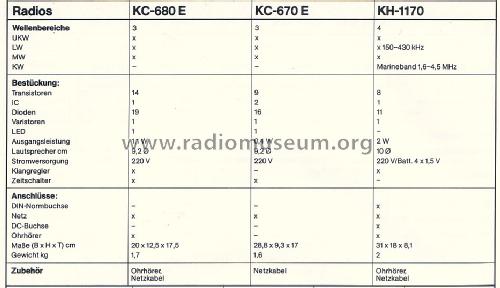

Hitachi Katalog 1977 - Seite 42
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch
- Power out
- 0.4 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Electronic Clock Radio KC-670E - Hitachi Ltd.; Tokyo
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 288 x 93 x 170 mm / 11.3 x 3.7 x 6.7 inch
- Notes
-
Hitachi 3-Band Electronic Clock Radio Model KC-670E.
9x Transistors, 2x IC, 16x Diodes, 1x Varistor, 1x LED.
- Net weight (2.2 lb = 1 kg)
- 1.6 kg / 3 lb 8.4 oz (3.524 lb)
- Literature/Schematics (1)
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
