FM-AM Portable Radio KH-1040E / KH-1040ER

Hitachi Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1976 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 220255
    • alternative name: Hitachi Sales Corp. of America

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 465/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage

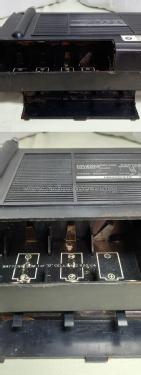

  • Line / Batteries (any type) / AC: 240 / D: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM-AM Portable Radio KH-1040E / KH-1040ER - Hitachi Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 253 x 163 x 68 mm / 10 x 6.4 x 2.7 inch
  • Notes

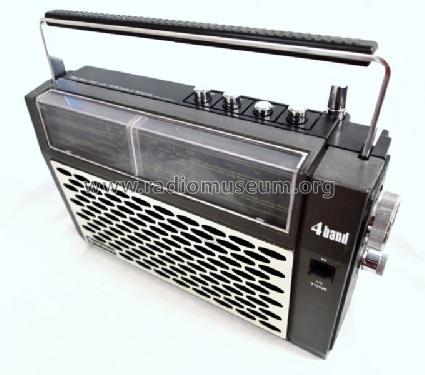

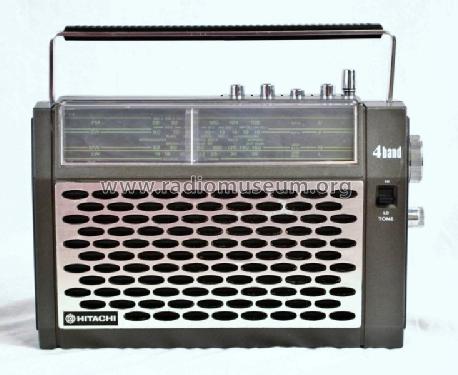

  • FM/SW/MW/LW Portable Radio Model - Hitachi KH-1040E / KH-1040ER

    Frequency Range:
     -  FM 88 - 108 MHz
     -  SW 6 - 18 MHz
     -  MW 530 - 1605 kHz
     -  LW 150 - 350 kHz

    Power supply:
     -  version KH-1040E:   220-240 VAC / 7W
     -  version KH-1040ER: 240 VAC / 7W

    Made in Singapore.

  • Net weight (2.2 lb = 1 kg)
  • 1.8 kg / 3 lb 15.4 oz (3.965 lb)
  • Mentioned in
  • Trader Service Sheet 3388/ 1979
  • Author
  • Model page created by Peter Kinnaird. See "Data change" for further contributors.
