FM-AM Portable Radio KH-435H

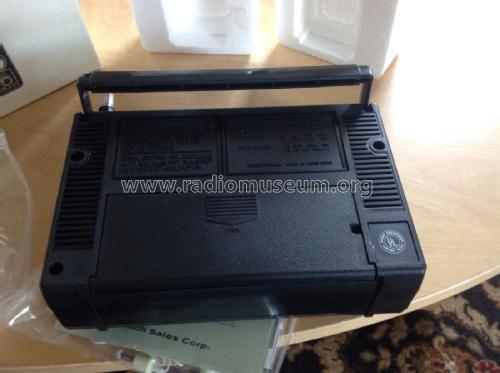

FM-AM Portable Radio KH-435H; Hitachi Ltd.; Tokyo (ID = 2252039) Radio FM-AM Portable Radio KH-435H; Hitachi Ltd.; Tokyo (ID = 2252037) Radio
FM-AM Portable Radio KH-435H; Hitachi Ltd.; Tokyo (ID = 2252038) Radio FM-AM Portable Radio KH-435H; Hitachi Ltd.; Tokyo (ID = 2252040) Radio
Use red slider bar for more.
FM-AM Portable Radio KH-435H; Hitachi Ltd.; Tokyo (ID = 2252039) Radio
Hitachi Ltd.; Tokyo: FM-AM Portable Radio KH-435H [Radio] ID = 2252039 1400x1045
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM Portable Radio KH-435H, Hitachi Ltd.; Tokyo:
ebay.com 273183635856 seller remaudchristian

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / AC: ? /DC: AA: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
Power out 0.35 W (undistorted)
from Radiomuseum.org Model: FM-AM Portable Radio KH-435H - Hitachi Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 108 x 54 mm / 7.1 x 4.3 x 2.1 inch
Notes

Made in Hong Kong

Net weight (2.2 lb = 1 kg) 0.640 kg / 1 lb 6.6 oz (1.41 lb)

Model page created by Aldo Andreani. See "Data change" for further contributors.
