For model AM/FM Stereo Tuner FT-5500, Hitachi Ltd.; Tokyo:
My Hitachi FT-5500 AM/FM tuner which I bought new in the early 1980s.

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1981–1984 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 120; 110-120; 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM/FM Stereo Tuner FT-5500 - Hitachi Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 60 x 307 mm / 17.1 x 2.4 x 12.1 inch
Notes

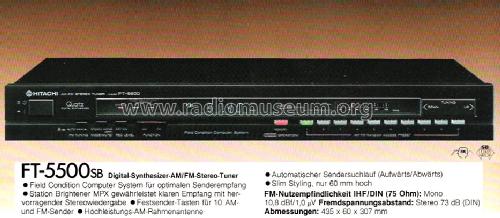

An AM/FM digital synthesized stereo tuner. 10 buttons for preset radio stations, FM TUNING switch, FM MODE switch, REC LEVEL switch, MEMORY write key with indicator, PRESET keys with indicator, TUNING keys, SIGNAL METER RF High Selectivity indicator, IF High Selectivity indicator, STEREO indicator. On the back, terminals for AM and FM antenna, detachable AM loop antenna, RCA phono line output sockets, channel spacing selector switch (USA model: AM 9kHz/10kHz, other models: FM 100kHz/50kHz, AM 10kHz/9kHz).

Specification
FM section
Circuit systemMicrocomputer controlled digital synthesizer system with F.C.C.S. Station Brightener, PLL MPX.
Frequency band USA/Canada87.9-107.9 MHz (100 kHz steps)
Frequency band Europe/Asia/Latin America87.5-108 MHz (50 kHz steps)
Sensitivity1.0µV (75Ω IHF and DIN), 10.8dBf (new IHF 75Ω)
Total harmonic distortion
(IF wide mode)
MONO: 0.04% (at 1kHz, IHF and DIN)
STEREO: 0.06% (at 1kHz, IHF and DIN)
Signal-to-noise ratioMONO: 85dB (IHF), 78dB (DIN)
STEREO: 78dB (IHF), 73dB (DIN)
Frequency response20Hz-15kHz
Selectivity 45dB (±400kHz IHF and DIN, IF wide mode)
65dB (±300kHz IHF and DIN, IF High Selectivity mode)
Stereo separation60dB (1 kHz, IHF and DIN)
Capture ratio1.0dB (IHF and DIN)
AM suppression ratio65dB (IHF and DIN)
Output voltage550mV (400Hz, 75kHz deviation)
Antenna terminal75Ω unbalanced
AM section
Circuit systemMicrocomputer-controlled digital synthesizer system first stage 2-gang electronic tuner front end
Frequency range USA/Canada530-1620 kHz (10 kHz steps)
Frequency range Europe/Asia/Latin America522-1611 kHz (9 kHz steps)
Sensitivity12µV (IHF), 25µV (DIN)
250µV/m (IHF), 500µV/m (DIN)  (Loop antenna)
Selectivity50dB (IHF ±10kHz) 50dB (DIN ±9kHz)
Signal to noise ratio54dB (IHF and DIN)
Output voltage 165mV (400Hz 30% modulation)

Versions/Power requirements
U.S.A. and Canada  /  120V AC 60Hz
Double voltage sets  /  110-120V/220-240V AC 50/60Hz
Europe, UK and Australia  /  220-240V 50Hz

Power consumption:  9 watts

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Source of data -- Original-techn. papers.
Literature/Schematics (1) - - Manufacturers Literature (Hitachi Service manual FT-5500 dated September 1981)
Literature/Schematics (2) - - Manufacturers Literature (FT-5500 Instruction manual)

Model page created by Howard Craven. See "Data change" for further contributors.
