HCA-7500 MKII (Mk2)

HCA-7500 MKII ; Hitachi Ltd.; Tokyo (ID = 1214924) Ampl/Mixer HCA-7500 MKII ; Hitachi Ltd.; Tokyo (ID = 1214925) Ampl/Mixer
HCA-7500 MKII ; Hitachi Ltd.; Tokyo (ID = 1214926) Ampl/Mixer HCA-7500 MKII ; Hitachi Ltd.; Tokyo (ID = 1214927) Ampl/Mixer
HCA-7500 MKII ; Hitachi Ltd.; Tokyo (ID = 1214928) Ampl/Mixer
Use red slider bar for more.

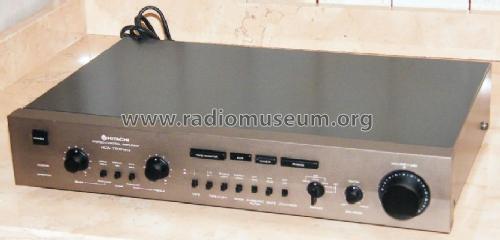

HCA-7500 MKII ; Hitachi Ltd.; Tokyo (ID = 1214924) Ampl/Mixer
Hitachi Ltd.; Tokyo: HCA-7500 MKII [Ampl/Mixer] ID = 1214924 1265x609
Select picture or schematic to display from thumbnails on the right and click for download.
For model HCA-7500 MKII (Mk2), Hitachi Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1980 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details

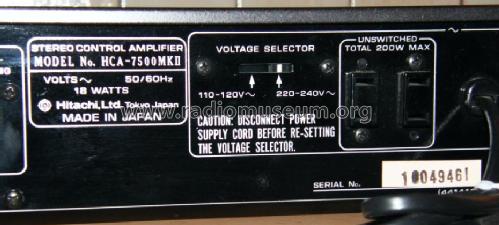

Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: HCA-7500 MKII - Hitachi Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 83 x 292 mm / 17.1 x 3.3 x 11.5 inch
Notes Preamplificatore stereo della serie dell'amplificatore finale HMA 7500 MKII.
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)

Model page created by Fabio Rizzo. See "Data change" for further contributors.
