Hiphonic KH-907H

Hiphonic KH-907H; Hitachi Ltd.; Tokyo (ID = 775041) Radio

Hiphonic KH-907H; Hitachi Ltd.; Tokyo (ID = 775042) Radio
Hiphonic KH-907H; Hitachi Ltd.; Tokyo (ID = 549006) Radio Hiphonic KH-907H; Hitachi Ltd.; Tokyo (ID = 549010) Radio
Hiphonic KH-907H; Hitachi Ltd.; Tokyo (ID = 549007) Radio Hiphonic KH-907H; Hitachi Ltd.; Tokyo (ID = 549008) Radio
Hiphonic KH-907H; Hitachi Ltd.; Tokyo (ID = 549012) Radio Hiphonic KH-907H; Hitachi Ltd.; Tokyo (ID = 879205) Radio
Use red slider bar for more.
Hiphonic KH-907H; Hitachi Ltd.; Tokyo (ID = 549006) Radio

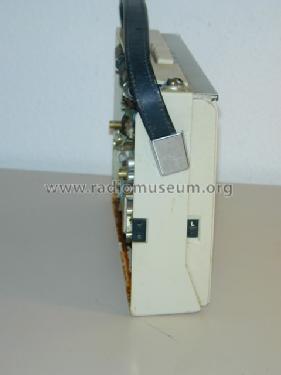

Hitachi Ltd.; Tokyo: Hiphonic KH-907H [Radio] ID = 549006 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hiphonic KH-907H, Hitachi Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA235 2SA235 2SA235 2SA350 2SA350 2SB75 2SB77 2SB156 2SB156
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Hiphonic KH-907H - Hitachi Ltd.; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 165 x 70 mm / 10.6 x 6.5 x 2.8 inch
Notes SW band 6-18 Mhz. Sockets for earphone, & stereo decoder.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Source of data - - Data from my own collection
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Eckhard Wegner. See "Data change" for further contributors.
