KH-1230H
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 220136
-
- alternative name: Hitachi Sales Corp. of America
Advert in SE-Radio-TV-Bladet 9/1968 p.310
Advert in SE-Radio-TV-Bladet 9/1968 p.310
- Number of Transistors
- 12
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / UM2: 4 x 1,5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: KH-1230H - Hitachi Ltd.; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 230 x 142 x 58 mm / 9.1 x 5.6 x 2.3 inch
- Notes
-

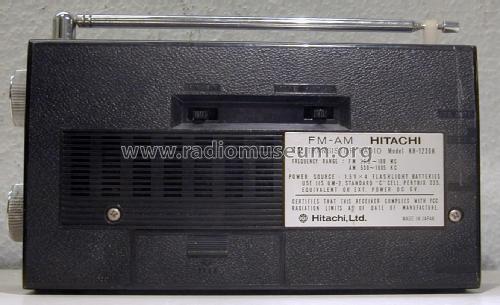

Hitachi KH-1230H;
AM/FM portable transistor radio, DC only with ac-adaptor socket 6V, headphone socket,squelch, battery check indicator, window for volume display, rod antenna
- Net weight (2.2 lb = 1 kg)
- 1.820 kg / 4 lb 0.1 oz (4.009 lb)
- Mentioned in
- Advert in N/Radio-TV-Bladet 9/1968 p.310
- Author
- Model page created by a member from A. See "Data change" for further contributors.
