KH-914

KH-914; Hitachi Ltd.; Tokyo (ID = 2275678) Radio KH-914; Hitachi Ltd.; Tokyo (ID = 1953892) Radio
KH-914; Hitachi Ltd.; Tokyo (ID = 1953893) Radio KH-914; Hitachi Ltd.; Tokyo (ID = 1953894) Radio
KH-914; Hitachi Ltd.; Tokyo (ID = 1953895) Radio KH-914; Hitachi Ltd.; Tokyo (ID = 1953896) Radio
KH-914; Hitachi Ltd.; Tokyo (ID = 2275673) Radio KH-914; Hitachi Ltd.; Tokyo (ID = 2275674) Radio
KH-914; Hitachi Ltd.; Tokyo (ID = 2275676) Radio KH-914; Hitachi Ltd.; Tokyo (ID = 2275679) Radio
Use red slider bar for more.
KH-914; Hitachi Ltd.; Tokyo (ID = 2275678) Radio
Hitachi Ltd.; Tokyo: KH-914 [Radio] ID = 2275678 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model KH-914, Hitachi Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1968–1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-240 / UM-3: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: KH-914 - Hitachi Ltd.; Tokyo
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 110 x 130 x 42 mm / 4.3 x 5.1 x 1.7 inch

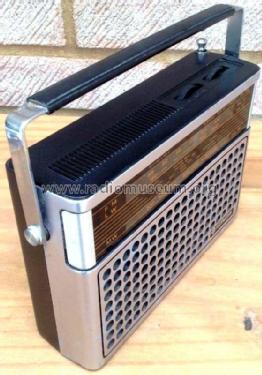

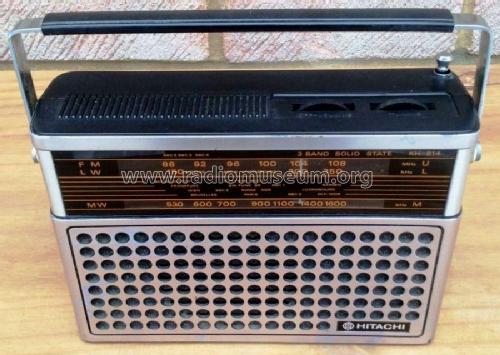

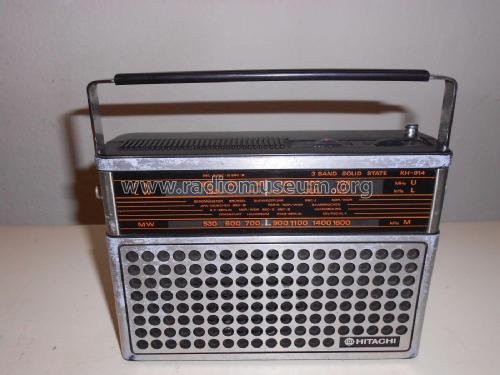

Notes Hitachi KH-914 AM/FM transistor radio with earphone socket and carrying strap.
Net weight (2.2 lb = 1 kg) 0.320 kg / 0 lb 11.3 oz (0.705 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
