KH-980E

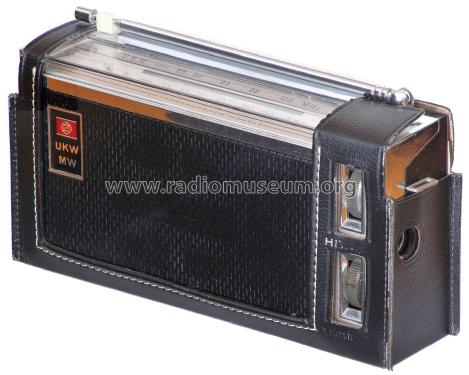

KH-980E; Hitachi Ltd.; Tokyo (ID = 835049) Radio

KH-980E; Hitachi Ltd.; Tokyo (ID = 2555294) Radio
KH-980E; Hitachi Ltd.; Tokyo (ID = 1055575) Radio KH-980E; Hitachi Ltd.; Tokyo (ID = 2571152) Radio
KH-980E; Hitachi Ltd.; Tokyo (ID = 2571151) Radio KH-980E; Hitachi Ltd.; Tokyo (ID = 2571157) Radio
KH-980E; Hitachi Ltd.; Tokyo (ID = 1881233) Radio KH-980E; Hitachi Ltd.; Tokyo (ID = 1881234) Radio
KH-980E; Hitachi Ltd.; Tokyo (ID = 1881235) Radio KH-980E; Hitachi Ltd.; Tokyo (ID = 1881236) Radio
KH-980E; Hitachi Ltd.; Tokyo (ID = 873468) Radio KH-980E; Hitachi Ltd.; Tokyo (ID = 873471) Radio
Use red slider bar for more.
KH-980E; Hitachi Ltd.; Tokyo (ID = 1055575) Radio
Hitachi Ltd.; Tokyo: KH-980E [Radio] ID = 1055575 1400x1636
Select picture or schematic to display from thumbnails on the right and click for download.
For model KH-980E, Hitachi Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1966–1971 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA435 2SA235 2SA350 2SA234 2SA234 2SB75 2SB77 2SB77 2SB77 1N34A 1N34A 1N60 1N60 1N60 1S85
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.22 W (undistorted)
from Radiomuseum.org Model: KH-980E - Hitachi Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 189 x 97 x 43 mm / 7.4 x 3.8 x 1.7 inch
Notes

UKW 87,5-100 MHz, MW 530-1605 kHz. Das KH-980E ist eine Variante des KH-980H. Es hat zusätzlich eine schaltbare AFC und eine Autoantennenbuchse.

Das Gerät wurde 1966-1967 in der DDR verkauft. Vermutlich wurde für diesen Auftrag eine spezielle Serie aufgelegt, wie die deutsche Beschriftung nahelegt.

Siehe auch Hitachi KH-980H mit UKW/FM-Bereich 86,5 - 108 MHz und Anschluss für externe Speisung statt Autoantennen-Anschluss.

Net weight (2.2 lb = 1 kg) 0.660 kg / 1 lb 7.3 oz (1.454 lb)
Price in first year of sale 420.00 DM

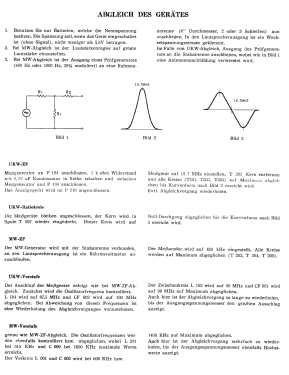

Literature/Schematics (1) -- Schematic

Model page created by Rainer Goelsdorf. See "Data change" for further contributors.
