KM-1035
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1977 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 246888
-
- alternative name: Hitachi Sales Corp. of America

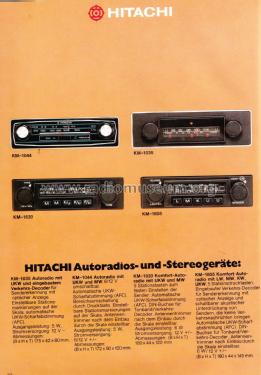

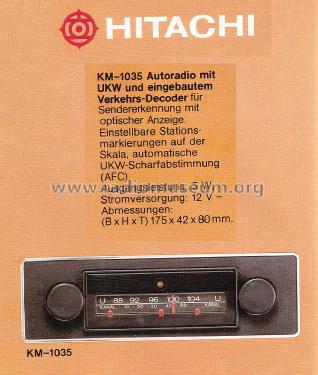

Hitachi Katalog 1977 - Seite 32
Hitachi Katalog 1977 - Seite 32
Hitachi Katalog 1977/78
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 5 W (max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: KM-1035 - Hitachi Ltd.; Tokyo
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 175 x 42 x 80 mm / 6.9 x 1.7 x 3.1 inch
- Notes
-
Hitachi Autoradio mit UKW und eingebautem Verkehrs-Decoder.
Modell KM-1035. AFC.
- Literature/Schematics (1)
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
