Stereo Cassette Tape Deck D-5500

• alternative name: Hitachi Sales Corp. of America

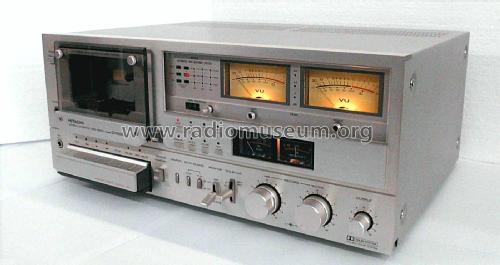

Hitachi D-5500

The HITACHI D-5500 was introduced in 1979. It was a sophisticated 2 motor deck featuring Hitachi's own Unitorque Direct Drive motor (0.028% WRMS wow and flutter) and their own "Close Gap" R&P heads in a 3 head configuration. The highlight of this deck was the ATRS (Automatic Tape Response System). The ATRS brain is a sophisticated microcomputer. Because there were hundreds of different tapes on the market, ATRS was designed to match bias and EQ settings to the precise characteristics of each one you use. Press the Test button while in record and in 20 seconds ATRS carries out six calibration functions. It also has three individual memories for the test results of the three tapes you use most frequently. For the ultimate in user comfort interface the Hitachi D-5500 features a full IC logic detachable control block that doubles as a wireless infrared remote unit. Soon after the release of the D-5500 it was introduced the D-5500M that added Metal tape compatibility.

Im Jahre 1979 vorgestelltes Spitzen-Kassettengerät. Vormagnetisierung und Entzerrung lassen sich vollautomatisch einstellen durch das Bandsortenjustierungssystem ATRS. Der Hitachi R&P Kombikopf ermöglicht eine echte Hinterbandkontrolle. Dolby (B) Rauschunterdrückung, Zwei Motoren, Direktantrieb durch Hitachi-Unitorque-Motor. Infrarot Fernbedienung - dem Gerät entnehmbar.

Außergewöhnlich gute technische Daten wie:

• Frequenzgang 20 - 20.000 Hz Chromband, nach DIN
• Gleichlaufschwankungen 0,09 % (DIN) oder 0,028 % (WRMS)
• Fremdspannungsannungsabstand 60 dB ohne Doly, 68 dB mit Dolby

Verkaufspreis ca DM 2.500,-

Noch im Jahre 1980 wurde das Nachfolgemodell Hitach-D5500M, nun auch für die neuen Reineisenbänder geeignet, vorgestellt
