• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206723

• • alternative name: Hitachi Sales Corp. of America

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / 110-120; 220-240/ 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

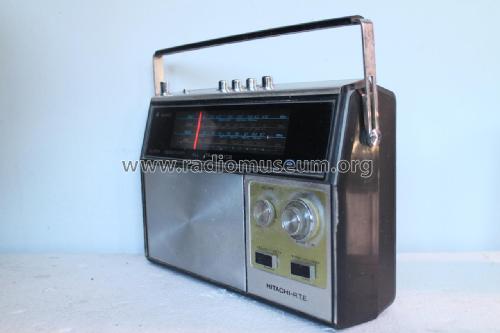

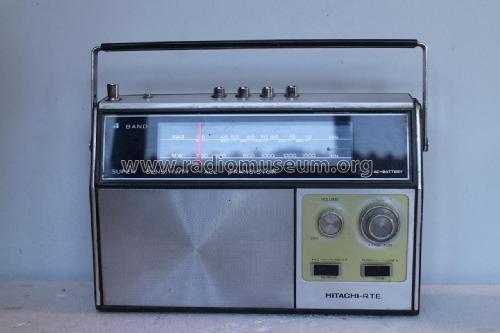

• Model: Super Sensitivity All Transistor Radio WH-1060R - Hitachi Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 165 x 180 x 70 mm / 6.5 x 7.1 x 2.8 inch

• Notes
• Hitachi WH-1060R Super Sensitivity All Transistor Radio;
  SW1: 1.6 - 4.5 MHz,
  SW2: 3.8 - 12 MHz,
  SW3: 12 - 27 MHz.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
