Transistor 6 TH-621

Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 112372) Radio

Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 644377) Radio

Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 644378) Radio

Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 644379) Radio

Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 644380) Radio
Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 2211919) Radio Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 2211918) Radio
Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 2481863) Radio Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 812453) Radio
Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 261758) Radio Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 274897) Radio
Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 114755) Radio Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 265161) Radio
Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 274898) Radio Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 626956) Radio
Use red slider bar for more.
Transistor 6 TH-621; Hitachi Ltd.; Tokyo (ID = 2211919) Radio

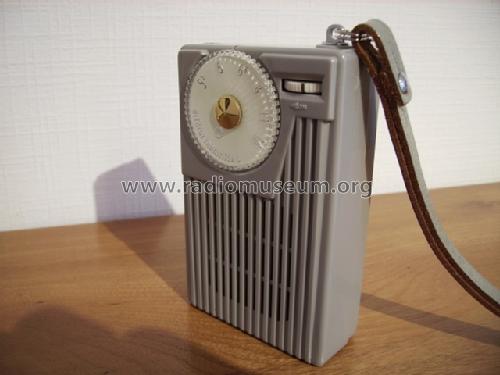

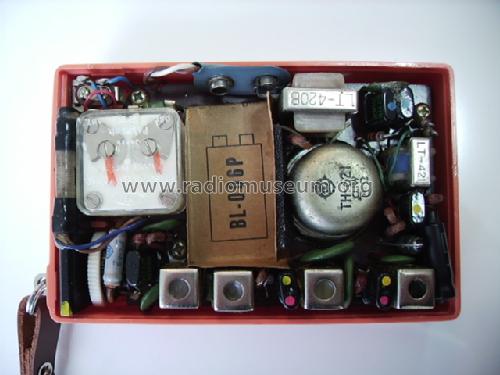

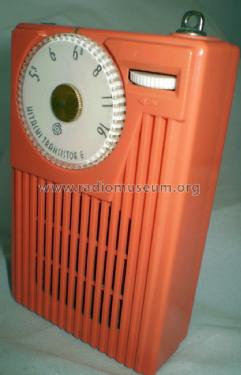

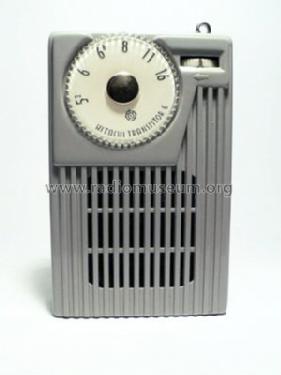

Hitachi Ltd.; Tokyo: Transistor 6 TH-621 [Radio] ID = 2211919 1200x1600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor 6 TH-621, Hitachi Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: HJ-23D HJ-22D HJ-22D HJ-15 HJ-17D HJ-17D
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out 0.06 W (unknown quality)
from Radiomuseum.org Model: Transistor 6 TH-621 - Hitachi Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 72 x 113 x 32 mm / 2.8 x 4.4 x 1.3 inch
Notes

Similar to the models reported under Standard SR-F22.

Laut Prospekt konnte zusätzlich ein "Lautsprecher zum Ansetzen" für das Gerät zum Preis von 48.-DM erworben werden

Sold in Australia during 1959 for £29/8/-.

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Price in first year of sale 179.00 DM
Mentioned in Beitman Radio Diagrams, Vol. 20, 1960
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 3-59, Set 433, Folder 10)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (E Series Handbook Vol. 1, Page H7.)

Model page created by Trev Levick. See "Data change" for further contributors.
