Kelly Transistor 8 WH-822H

Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 2171373) Radio
Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 2242918) Radio Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 2242919) Radio

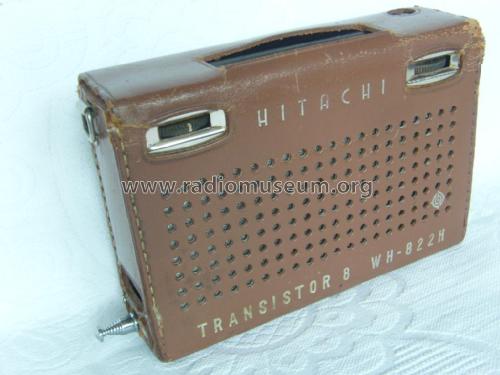

Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 2242920) Radio Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 2242921) Radio

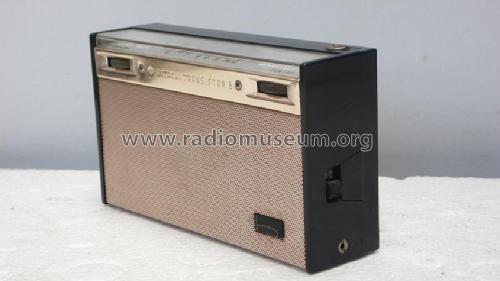

Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 1701285) Radio Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 1701286) Radio
Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 1701287) Radio Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 1701288) Radio
Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 1799707) Radio Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 1934715) Radio
Use red slider bar for more.
Kelly Transistor 8 WH-822H; Hitachi Ltd.; Tokyo (ID = 2242918) Radio

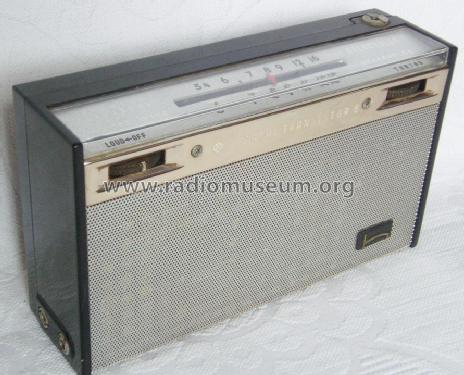

Hitachi Ltd.; Tokyo: Kelly Transistor 8 WH-822H [Radio] ID = 2242918 892x720
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kelly Transistor 8 WH-822H, Hitachi Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA81 2SA82 2SA12 2SA12 2SB75 2SB75 2SB77 2SB77 1N34A HV15
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / AA: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Kelly Transistor 8 WH-822H - Hitachi Ltd.; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.125 x 3.5625 x 1.75 inch / 156 x 90 x 44 mm
Notes

Hitachi WH822H

Eight transistor 2-band portable with 2½" dynamic speaker. Supplied with telescopic antenna for short wave. Auxiliary antenna, earphone, leather carrying case with shoulder straps. Packed in attractive velvet lined display box. Plastic case gold and black. Frequency range 535-1605 kC/s (kHz), SW 6-18 MC/s (MHz). Takes 4 x 1015 (AA) batteries.

This model sold in Australia between 1960 & 1961 for £44/2/-. Price includes batteries.

See also Hitachi WH-822 "Kelly" and WH-822M (Marine).

Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Mentioned in Mingay's Price Service (Aug 1960 to Aug 1961.)

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
