• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118171

• • alternative name: Hitachi Sales Corp. of America

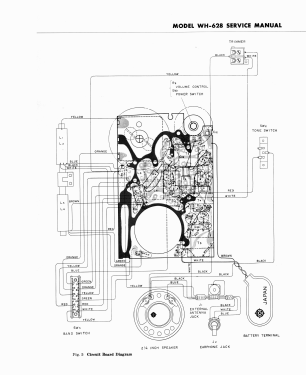

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA15 2SA12 2SA12 2SB75 2SB77 2SB77 1N34A HV15

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 cm = 2 inch

• Power out
• 0.15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: WH-628 - Hitachi Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 110 x 67 x 32 mm / 4.3 x 2.6 x 1.3 inch

• Notes

• Gerät verfügt über Tonschalter "Hell/Dunkel" (H/L). Anschlussmöglichkeit für externe Antenne, Ohrhörer. Lederetui mit Trageschlaufe.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Thorsten Brandenburg. See "Data change" for further contributors.
