21M115 Ch=196, M
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1953 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 361257

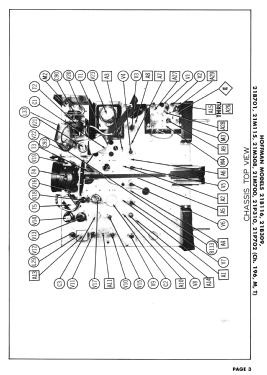

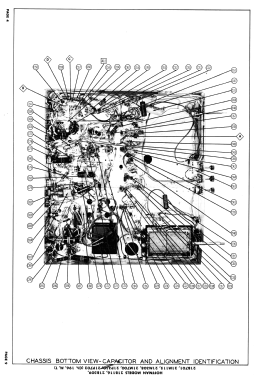

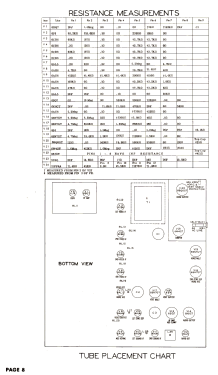

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- 6BQ7 or 6BK7 6J6 6CB6 6CB6 6CB6 6CB6 6AL5 6AH6 6AU6 6AU6 6AU6 6AL5 6SQ7 6K6GT 6AU6 6SN7GT 6SN7GT 6S4 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 21FP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 21M115 Ch=196, M - Hoffman Radio Corp.; Los
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Hoffman model 21M115 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 196, M, VHF tuner 9758 and picture tube 21FP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 195, folder 8, dated 2-53)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
