B-400 Ch= 118
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 44387
SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.25 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: B-400 Ch= 118 - Hoffman Radio Corp.; Los
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 15 x 8.75 x 21 inch / 381 x 222 x 533 mm
- Notes
- Built-in loop antenna. Engineered for small apartments and crowded rooms.
- Price in first year of sale
- 100.00 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965

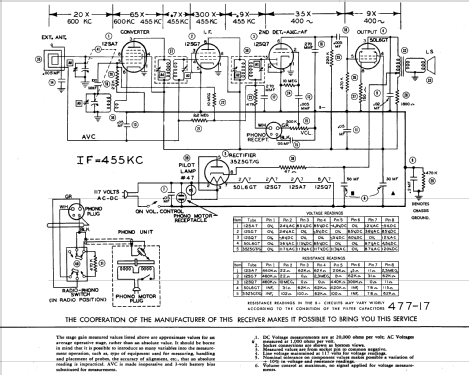

- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
- Mentioned in

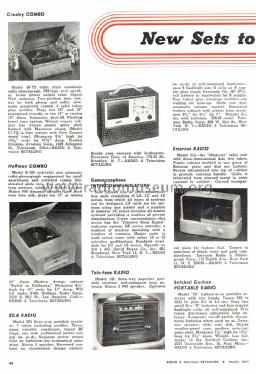

- Radio Retailing (Radio & Television R.) (March 1947 page 44.)
