W1007U Ch= 315U

W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415655) Television

W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415656) Television

W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415657) Television

W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415658) Television

W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415659) Television

W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415660) Television

W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415661) Television

W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415662) Television

W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415663) Television

W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415664) Television
W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415654) Television
Use red slider bar for more.
W1007U Ch= 315U; Hoffman Radio Corp.; (ID = 2415654) Television

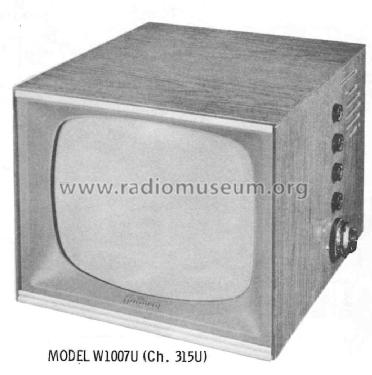

Hoffman Radio Corp.;: W1007U Ch= 315U [Television] ID = 2415654 1035x1041
Select picture or schematic to display from thumbnails on the right and click for download.
For model W1007U Ch= 315U, Hoffman Radio Corp.; Los Angeles (CA):

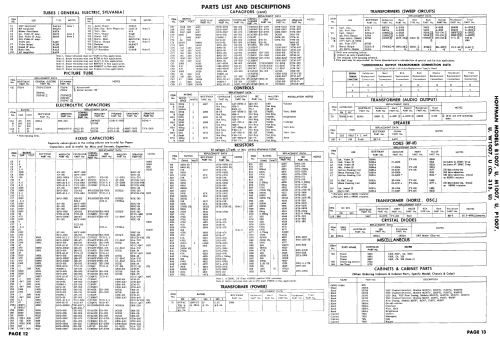

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Hoffman Radio Corp.; Los Angeles (CA)
Year: 1957 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: 6AF4A or 6AF4 6BQ7A 6AT8 6BZ6 or 6CB6 6BZ6 or 6CB6 6AS8 6CB6 6AU6 6AL5 6AV6 6K6GT 12AU7A or 12AU7 6C4 6AQ5 6AL5 6SN7GTB or 6SN7GT 6CU6 or 6BQ6GT 6AX4GT 1X2B 5U4GB or 5U4GA 17HP4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: W1007U Ch= 315U - Hoffman Radio Corp.; Los
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

Hoffman model W1007U is a 17" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 315U, VHF tuner 33759, UHF tuner 33758 and picture tube 17HP4.



Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 366 Folder 4 dated 8-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
