For model 10 Transistor 1005, Holiday; (brand)

Country:  Japan
Manufacturer / Brand:  Holiday; (brand)
Year: 1964 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / UM3: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.8 cm = 2.7 inch
Power out
from Radiomuseum.org Model: 10 Transistor 1005 - Holiday; brand
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 138 x 100 x 55 mm / 5.4 x 3.9 x 2.2 inch
Notes

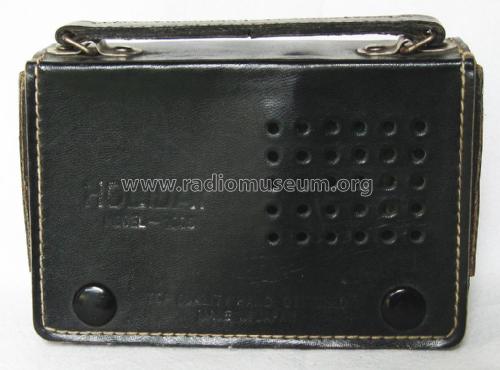

MW-Taschenradio mit Leder-Tragegriff oben, Abstimmung und Lautstärkeregler/Ein/Aus frontseitig und 3,5mm Ohrhöreranschluss links.

Empfangsbereich 530 - 1600kHz.

Made in Japan


Net weight (2.2 lb = 1 kg) 0.341 kg / 0 lb 12 oz (0.751 lb)
