Fully Callibrated Oscilloscope

Fully Callibrated Oscilloscope ; Radio and Hobbies, (ID = 1394692) Equipment Fully Callibrated Oscilloscope ; Radio and Hobbies, (ID = 1394693) Equipment
Fully Callibrated Oscilloscope ; Radio and Hobbies, (ID = 1394705) Equipment
Use red slider bar for more.
Fully Callibrated Oscilloscope ; Radio and Hobbies, (ID = 1394692) Equipment
Radio and Hobbies,: Fully Callibrated Oscilloscope [Equipment] ID = 1394692 933x609
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fully Callibrated Oscilloscope, Radio and Hobbies, Radio Television & Hobbies, Electronics Australia magazine; Sydney:

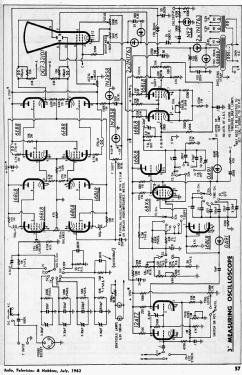

This Oscilloscope was built from a project design published in Radio, Television & Hobbies magazine from June to August, 1963 under the heading 'Building a Fully Calibrated Oscilloscope'. Valve line up: 4 x 6BL8, 2 x 6EB8, 12AT7 and 6BX6. The CRT is a DG7-32/01. Vertical bandwidth D.C. to 3.75 MHz (-3dB).

Country:  Australia
Manufacturer / Brand:  Radio and Hobbies, Radio Television & Hobbies, Electronics Australia magazine; Sydney
Year: 1963 Category: Service- or Lab Equipment
Valves / Tubes 8: 12AT7 6BX6 6BL8 6BL8 6BL8 6BL8 6EB8 6EB8
Semiconductors (the count is only for transistors) OA91 OA91 1N2858 1N2858 1N1763 1N1763 1N1763 1N1763
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Fully Callibrated Oscilloscope - Radio and Hobbies, Radio
Material Metal case
Notes

3" (CRT type DG7-32101) fully callibrated oscilloscope for home construction as described by Radio Television & Hobbies of June, July & August 1963.

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
