Superheterodyne before 1930

Superheterodyne before 1930; Homebrew - ORIGINAL, (ID = 371262) Radio
Use red slider bar for more.
Superheterodyne before 1930; Homebrew - ORIGINAL, (ID = 371262) Radio
Homebrew - ORIGINAL,: Superheterodyne before 1930 [Radio] ID = 371262 782x436
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superheterodyne before 1930, Homebrew - ORIGINAL, Belgium:

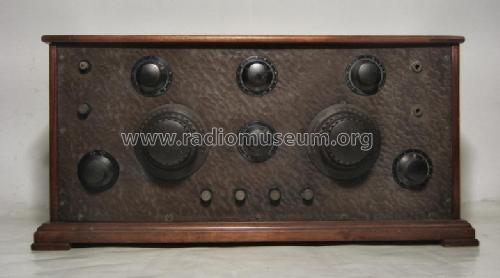

Made in 1927-1928, probably by a small Belgian (Walloon) factory or workshop. All binding posts are situated on the front panel: on the left binding posts for the frame aerial, in the middle connectors for the different voltages, 4V, 40V and 80V, on the right jacks for headphones and loudspeaker. The arrangement of the front is perfectly symmetrical.

Country:  Belgium
Manufacturer / Brand:  Homebrew - ORIGINAL, Belgium
Year: 1925 ?? Category: Broadcast Receiver - or past WW2 Tuner
Details
Loudspeaker
Power out
from Radiomuseum.org Model: Superheterodyne before 1930 - Homebrew - ORIGINAL, Belgium
Notes HOMEBREW ORIGINAL: noncomercial product from times when it was state of the art. Guidelines at "Manufacturer".
All data go into the picture legend, NOT into this Model sheet!
See also HOMEBREW RECENT, HOMEBREW REPLICA and UNKNOWN (and SELBSTBAU, Germany).

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Homebrew - ORIGINAL, Belgium
Here you find 24 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
