906C (B)
Howard Radio Company; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Howard Radio Company; Chicago (IL)
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 44652

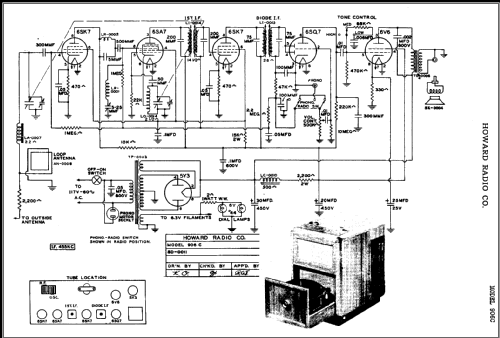

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 inch = 22.9 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 906C - Howard Radio Company; Chicago
- Shape
- Console: Chairside Radio.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
- Mentioned in
- The Radio Collector's Directory and Price Guide 1921 - 1965 (Collector's Guide to AR7.Ed. Slusser tube)
- Literature/Schematics (1)

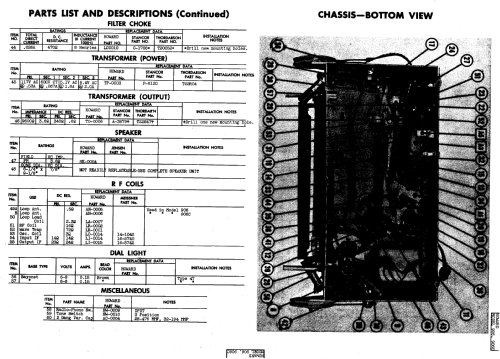

- Photofact Folder, Howard W. SAMS (Set 17, Folder 477-18)
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (January 1947 page 30.)
