Neutrodyne Early 1st generation coils
Howard Radio Company; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Howard Radio Company; Chicago (IL)
- Year
- 1924
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 243824
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne
Circa May 1924 Howard Neutrodyne

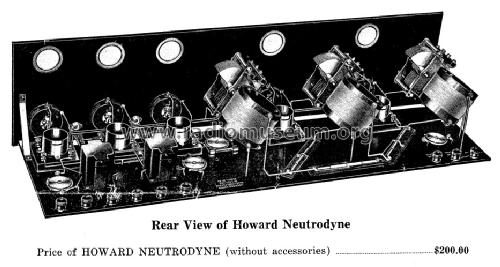

Factory bulletin
Original factory bulletin
Factory bulletin
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; 2 AF stage(s); Neutrodyne
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Neutrodyne Early [1st generation coils] - Howard Radio Company; Chicago
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 32.5 x 9 x 12 inch / 826 x 229 x 305 mm
- Notes
-
1st generation Howard Neutrodyne receiver circa May 1924.
- Literature/Schematics (1)
- Radio Manufacturers of the 1920's, Vol. 2 (page 69)
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
