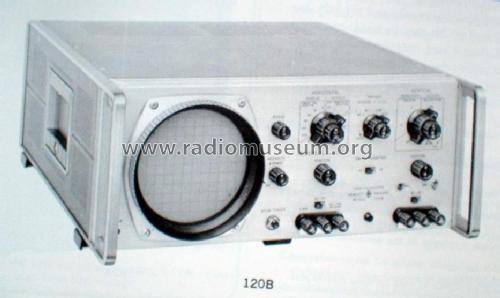

Oscilloscope 120B

Oscilloscope 120B; Hewlett-Packard, HP; (ID = 442164) Equipment

Oscilloscope 120B; Hewlett-Packard, HP; (ID = 441959) Equipment

Oscilloscope 120B; Hewlett-Packard, HP; (ID = 440609) Equipment
Oscilloscope 120B; Hewlett-Packard, HP; (ID = 186907) Equipment Oscilloscope 120B; Hewlett-Packard, HP; (ID = 438830) Equipment
Oscilloscope 120B; Hewlett-Packard, HP; (ID = 439587) Equipment Oscilloscope 120B; Hewlett-Packard, HP; (ID = 440607) Equipment
Oscilloscope 120B; Hewlett-Packard, HP; (ID = 1089916) Equipment Oscilloscope 120B; Hewlett-Packard, HP; (ID = 1089917) Equipment
Use red slider bar for more.
Oscilloscope 120B; Hewlett-Packard, HP; (ID = 186907) Equipment
Hewlett-Packard, HP;: Oscilloscope 120B [Equipment] ID = 186907 550x247
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope 120B, Hewlett-Packard, (HP); Palo Alto, CA:
HP 120B

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1961 Category: Service- or Lab Equipment
Valves / Tubes 17: 12AU7 12AU7 12AU7 12AU7 12AU7 6DJ8 6DJ8 6DJ8 6GH8A 6GH8A 6GH8A 6AU6 6AQ5 6C4 12B4A 12B4A unknown_CRT
Semiconductors (the count is only for transistors) 1: 2N301
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Oscilloscope 120B - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Rack
Dimensions (WHD) 19 x 7 x 18.37 inch / 483 x 178 x 467 mm
Notes

General-purpose oscilloscope. Bandwidth: DC to 450 kc.

CRT is an improved 5AQP (parallax-free, locating the graticule on inside of front of tube).

Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Price in first year of sale 530.00 $
Collectors' prices
External source of data Owners Guide
Source of data -- Original-techn. papers.

Model page created by Sven Hoffmann. See "Data change" for further contributors.
