Electronic Counter 5216A
Use red slider bar for more.
Hewlett-Packard, HP;: Electronic Counter 5216A [Equipment] ID = 2576160 1400x1369
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1970 | Category: Service- or Lab Equipment | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Wave bands | Wave Bands given in the notes. |
|---|---|
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 115; 230 Volt |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Electronic Counter 5216A - Hewlett-Packard, HP; Palo Alto |
| Material | Metal case |
| Shape | Tablemodel without push buttons, Mantel/Midget/Compact up to 14 |
| Dimensions (WHD) | 190 x 155 x 279 mm / 7.5 x 6.1 x 11 inch |

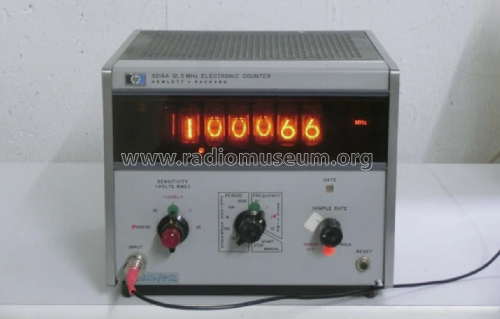

| Notes | Digital transistorized "12.5 MHz electronic counter". Range: 3 Hz to 12.5 MHz. Uses 7 Nixies tubes for display. |
| Net weight (2.2 lb = 1 kg) | 3.1 kg / 6 lb 13.3 oz (6.828 lb) |
| Literature/Schematics (1) | - - Manufacturers Literature (Operating and service manual) |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
