Signal Generator 606A Tubes and Transistors

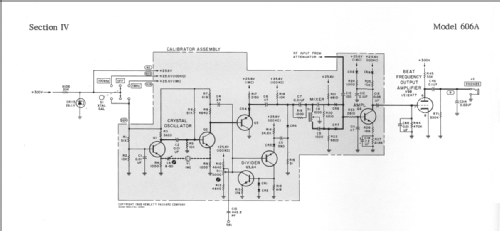

Signal Generator 606A; Hewlett-Packard, HP; (ID = 319635) Equipment

Signal Generator 606A; Hewlett-Packard, HP; (ID = 319636) Equipment

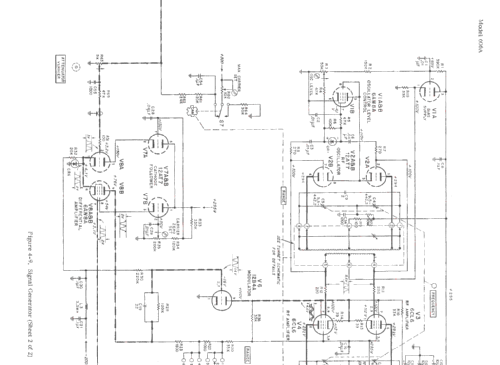

Signal Generator 606A; Hewlett-Packard, HP; (ID = 319637) Equipment

Signal Generator 606A; Hewlett-Packard, HP; (ID = 319638) Equipment

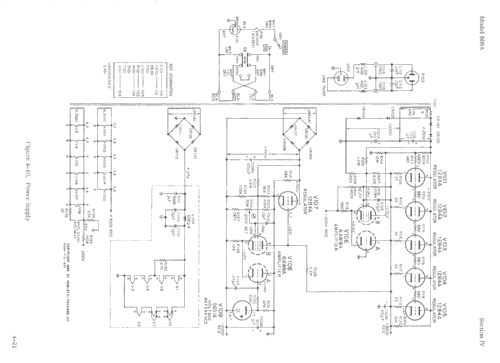

Signal Generator 606A; Hewlett-Packard, HP; (ID = 319639) Equipment

Signal Generator 606A; Hewlett-Packard, HP; (ID = 319640) Equipment
Signal Generator 606A; Hewlett-Packard, HP; (ID = 327791) Equipment Signal Generator 606A; Hewlett-Packard, HP; (ID = 1814797) Equipment
Signal Generator 606A; Hewlett-Packard, HP; (ID = 1919071) Equipment Signal Generator 606A; Hewlett-Packard, HP; (ID = 1919617) Equipment
Use red slider bar for more.
Signal Generator 606A; Hewlett-Packard, HP; (ID = 327791) Equipment

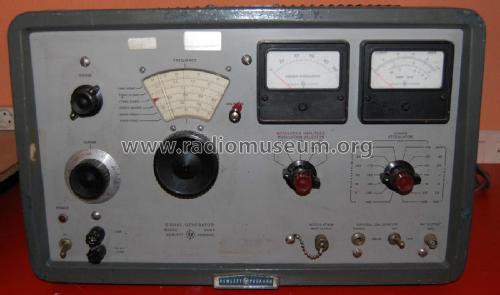

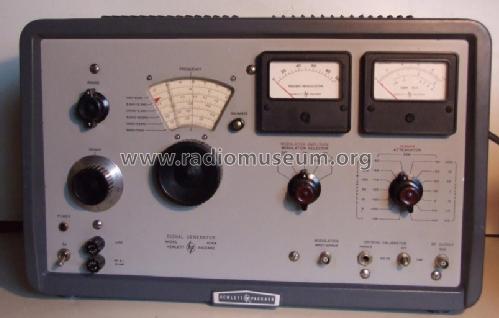

Hewlett-Packard, HP;: Signal Generator 606A [Equipment] ID = 327791 805x513
Select picture or schematic to display from thumbnails on the right and click for download.
For model Signal Generator 606A Tubes and Transistors, Hewlett-Packard, (HP); Palo Alto, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1969 Category: Service- or Lab Equipment
Valves / Tubes 19: 6AW8 12AT7 6CL6 6CL6 12AT7 12B4 12AT7 6AW8 12AT7 6AW8 12B4A 12B4A 12B4A 12B4A 12B4A 6AW8 12B4A 6AW8 5651A
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Signal Generator 606A [Tubes and Transistors] - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 500 x 310 x 340 mm / 19.7 x 12.2 x 13.4 inch
Notes Röhren teilweise mehrfach vorhanden.
Frequenzbereich 50 kHz bis 65 MHz. Modulation umschaltbar zwischen 400 Hz und 1000 Hz. Ausgangsspannung regelbar im Bereich von 0,1 µV bis 3 V.
Net weight (2.2 lb = 1 kg) 22.8 kg / 50 lb 3.5 oz (50.22 lb)
Mentioned in -- Original-techn. papers.

Model page created by Alexander Küffer. See "Data change" for further contributors.
