Vacuum Tube Voltmeter 410C

Hewlett-Packard, (HP); Palo Alto, CA

Data
Forum
Pictures
Collections

  • Year
  • 1963
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 75333

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Power type and voltage
  • Alternating Current supply (AC) / 115; 230 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Vacuum Tube Voltmeter 410C - Hewlett-Packard, HP; Palo Alto
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 130 x 165 x 279 mm / 5.1 x 6.5 x 11 inch
  • Notes

  • Electronic Voltmeter.

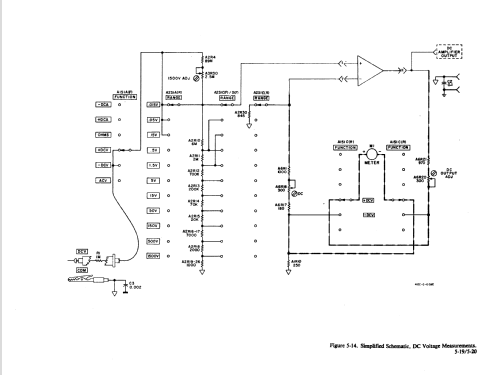

    DC: 15 mV to 1500 V in 15, 50 sequences, 11 ranges

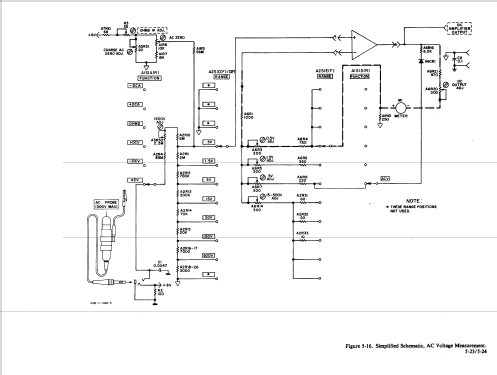

    AC: 0.5 V to 300 V in 0.5, 1.5, 5 sequences, 7 ranges

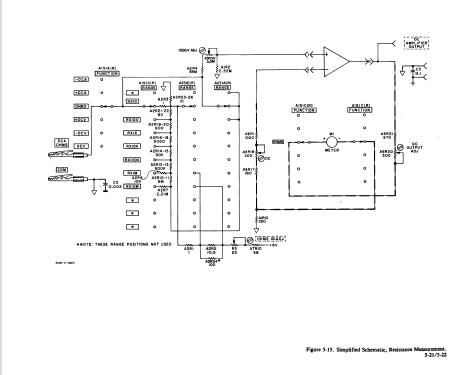

    Ohmmeter: 10 Ohm to 10 MOhm, center scale in 7 ranges

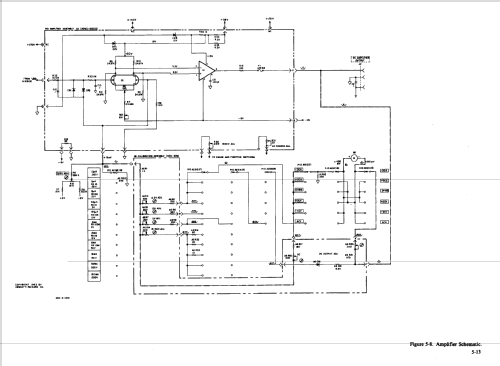

    Amplifier Voltage gain: 100 max.

    Accessories: HP Model 11036A AC probe with Eimac 2-01C UHF diode.

    Two versions of 410C exist with different amplifier versions. Early version with 12AT7 tube and chopper assembly and late version with OP amps without tube. Both versions have the same outside appearance and specs.

    The chopper uses 4 photoresistors that read 100 kOhms when in bright illumination, over 20 MOhms when dark. They are illuminated by two selected neon bulbs (NE-2?) and driven with a 100 Hz signal.

  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Vacuum Tube Voltmeter is part of the collections of the following members.

 Forum

Forum contributions about this model: Hewlett-Packard, HP;: Vacuum Tube Voltmeter 410C

Threads: 1 | Posts: 3

Gibt es jemanden, der mir sagen kann, wo man technische Daten über diesen Transistor im TO-3 Gehäuse finden kann?

In der ersten Bedruckungszeile steht das Firmenzeichen von Motorola

In der zweiten Bedruckungszeile steht: "3-063"

In der dritten Bedruckungszeilke steht "7739"

Der Leistungstransistor wird in einem HP410C - Röhrenvoltmeter verwendet, um die Heizspannung einer ECC81-Röhre mit stabilisierter Gleichspannung zu versorgen.

Michael Buschmann, 10.Jan.26

Weitere Posts (3) zu diesem Thema.
