VHF Signal-Generator 608E

VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 102247) Equipment

VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 102248) Equipment

VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 102251) Equipment

VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 102252) Equipment

VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 102253) Equipment

VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 102254) Equipment

VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 102258) Equipment

VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 102268) Equipment

VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 102269) Equipment

VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 102270) Equipment
VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 434401) Equipment VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 448675) Equipment
Use red slider bar for more.
VHF Signal-Generator 608E; Hewlett-Packard, HP; (ID = 434401) Equipment

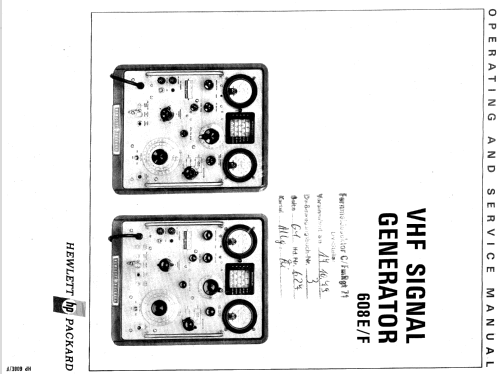

Hewlett-Packard, HP;: VHF Signal-Generator 608E [Equipment] ID = 434401 752x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model VHF Signal-Generator 608E, Hewlett-Packard, (HP); Palo Alto, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1967–1980 Category: Service- or Lab Equipment
Valves / Tubes 16: 6AL5 6AS7 12AT7 6U8A 5651A
Semiconductors (the count is only for transistors) 11:
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115-230 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: VHF Signal-Generator 608E - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 337 x 416 x 533 mm / 13.3 x 16.4 x 21 inch
Notes VHF Generator 10 MHz - 480 MHz in 5 Bereichen. Ausgangsspannung 0,1 µV bis 1 Volt stufenlos, Ausgang 50 Ohm, AM Modulationsfrequenz intern 400 und 1000 Hz, extern 20 Hz bis 20 kHz.
Net weight (2.2 lb = 1 kg) 28 kg / 61 lb 10.8 oz (61.674 lb)
Price in first year of sale 1'500.00 $
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) HP Electronic Test Instruments Catalog 1967
Literature/Schematics (2) HP Electronic Instruments and Systems 1980

Model page created by Bernd Freytag. See "Data change" for further contributors.
