• Country
• Germany

• Manufacturer / Brand
• Huber u. Brendel Electronic; Crailsheim

• Year
• 1965

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 209257

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver; ZF/IF 10700 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Batteries / addl. power jack / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch

• Material
• Metal case

• from Radiomuseum.org

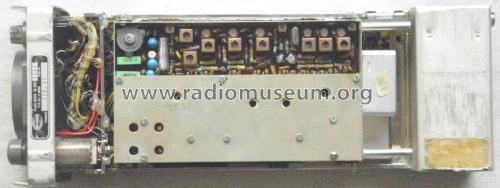

• Model: Sprechfunkgerät FuG 604 2-20 - Huber u. Brendel Electronic;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 95 x 65 x 255 mm / 3.7 x 2.6 x 10 inch

• Notes
• UKW-Sprechfunkgerät für das 2 m-Band, BOS-Funk oder Betriebsfunk.
  1 Kanal (Steckquarze), Frequenzmodulation, Sendeleistung 1 W.
  Tragbar bzw. Einbau in Fahrzeuge.
  FTZ-Nr.: E-39/65.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Author
• Model page created by Siegfried Droese. See "Data change" for further contributors.
