Hudson TRF

Hudson TRF ; Hudson Radio & (ID = 2132508) Radio Hudson TRF ; Hudson Radio & (ID = 2132509) Radio
Hudson TRF ; Hudson Radio & (ID = 2132510) Radio Hudson TRF ; Hudson Radio & (ID = 2132511) Radio
Hudson TRF ; Hudson Radio & (ID = 2132512) Radio
Use red slider bar for more.
Hudson TRF ; Hudson Radio & (ID = 2132508) Radio
Hudson Radio &: Hudson TRF [Radio] ID = 2132508 1400x642
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hudson TRF, Hudson Radio & Electric Co.; New York City, New York:
eBay item number:322609265598

Country:  United States of America (USA)
Manufacturer / Brand:  Hudson Radio & Electric Co.; New York City, New York
Year: 1925 ? Category: Broadcast Receiver - or past WW2 Tuner

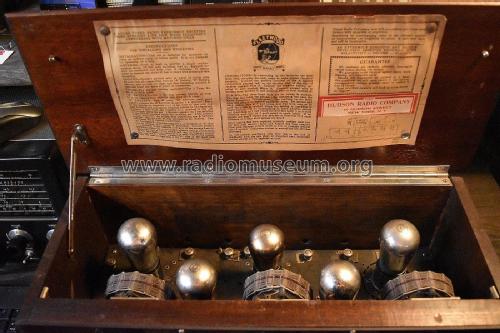

Valves / Tubes 5: UV201A UV201A UV201A UV201A UV201A
schematic requested
Main principle TRF without regeneration; 2 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Hudson TRF - Hudson Radio & Electric Co.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

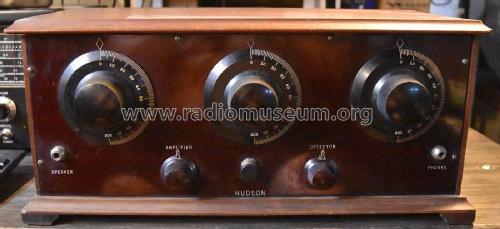

Hudson 5-tube Tuned Radio Frequency set built using the Freshman Masterpiece TRF Kit.

Model page created by Alan Larsen. See "Data change" for further contributors.



All listed radios etc. from Hudson Radio & Electric Co.; New York City, New York
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
