• Country
• Germany

• Manufacturer / Brand
• Hughes & Kettner; St. Wendel

• Year
• 2006 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 312989

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Guitar Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 220 - 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch

• Power out
• 30 W (undistorted)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

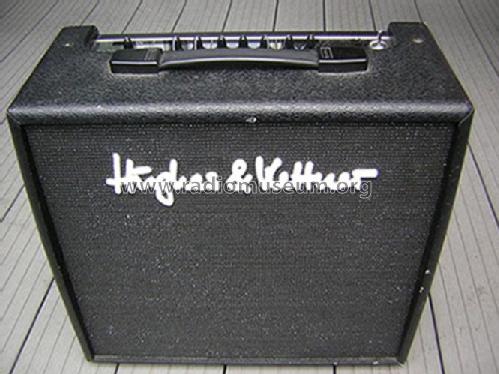

• Model: Edition Blue 30-R HU1703 - Hughes & Kettner; St. Wendel

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 420 x 220 mm / 17.3 x 16.5 x 8.7 inch

• Notes

• Made in Korea.

• Net weight (2.2 lb = 1 kg)
• 10.2 kg / 22 lb 7.5 oz (22.467 lb)

• Author
• Model page created by Hans-Georg Schirmer. See "Data change" for further contributors.
