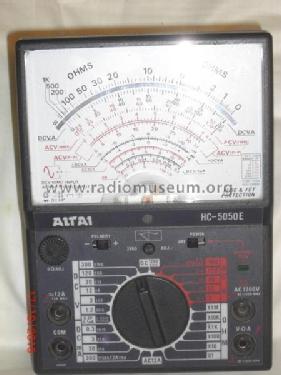

FET Multimeter Analog HC5050E

FET Multimeter Analog HC5050E; PeakTech GmbH, Heinz (ID = 2507498) Equipment FET Multimeter Analog HC5050E; PeakTech GmbH, Heinz (ID = 738591) Equipment
FET Multimeter Analog HC5050E; PeakTech GmbH, Heinz (ID = 738592) Equipment FET Multimeter Analog HC5050E; PeakTech GmbH, Heinz (ID = 1897520) Equipment
Use red slider bar for more.

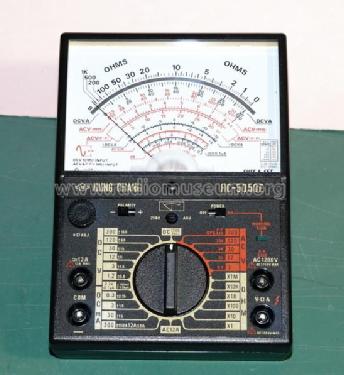

FET Multimeter Analog HC5050E; PeakTech GmbH, Heinz (ID = 2507498) Equipment
PeakTech GmbH, Heinz: FET Multimeter Analog HC5050E [Equipment] ID = 2507498 549x597
Select picture or schematic to display from thumbnails on the right and click for download.
For model FET Multimeter Analog HC5050E, PeakTech GmbH, Heinz-Günther Lau (HGL, H.G.L., Exacta); Ahrensburg

Country:  Germany
Manufacturer / Brand:  PeakTech GmbH, Heinz-Günther Lau (HGL, H.G.L., Exacta); Ahrensburg
Year: 1995 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: FET Multimeter Analog HC5050E - PeakTech GmbH, Heinz-Günther
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 125 x 170 x 50 mm / 4.9 x 6.7 x 2 inch
Notes FET Multitester Analog Messgerät.
DCV INPUT 10MOhm 24 Messbereiche ACV 3 bis 1200V DC V 0,3-1200V DCA 0,1µA-12A ACA bis 12A Widerstände 1K-1000MOhm dB Messbereich
Schaltbare Polaritätsumkehr, LED Betriebskontrolle,Aufstellbügel.
Net weight (2.2 lb = 1 kg) 0.480 kg / 1 lb 0.9 oz (1.057 lb)

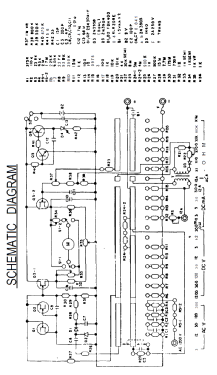

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Fred Nerger. See "Data change" for further contributors.
