Satellite Receiver Twin

Satellite Receiver Twin ; Huth GmbH; Erlensee (ID = 2102921) DIG/SAT Satellite Receiver Twin ; Huth GmbH; Erlensee (ID = 2102922) DIG/SAT
Satellite Receiver Twin ; Huth GmbH; Erlensee (ID = 2102923) DIG/SAT Satellite Receiver Twin ; Huth GmbH; Erlensee (ID = 2102924) DIG/SAT
Satellite Receiver Twin ; Huth GmbH; Erlensee (ID = 2102926) DIG/SAT Satellite Receiver Twin ; Huth GmbH; Erlensee (ID = 2102927) DIG/SAT
Satellite Receiver Twin ; Huth GmbH; Erlensee (ID = 2099175) DIG/SAT Satellite Receiver Twin ; Huth GmbH; Erlensee (ID = 2099176) DIG/SAT
Satellite Receiver Twin ; Huth GmbH; Erlensee (ID = 2099167) DIG/SAT Satellite Receiver Twin ; Huth GmbH; Erlensee (ID = 2099168) DIG/SAT
Use red slider bar for more.

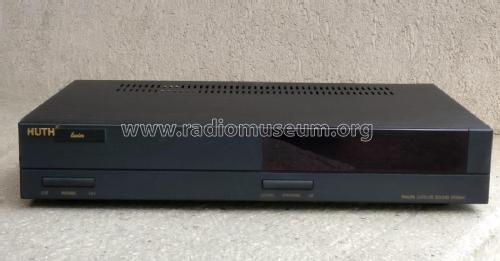

Satellite Receiver Twin ; Huth GmbH; Erlensee (ID = 2102921) DIG/SAT
Huth GmbH; Erlensee: Satellite Receiver Twin [DIG/SAT] ID = 2102921 1400x732
Select picture or schematic to display from thumbnails on the right and click for download.
For model Satellite Receiver Twin, Huth GmbH; Erlensee

Country:  Germany
Manufacturer / Brand:  Huth GmbH; Erlensee
Year: 1994 Category: Digital terrestrial, Internet and SAT receiver (also analogue)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands SAT-IF

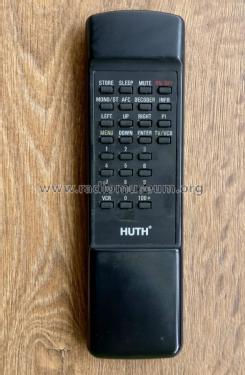

Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Satellite Receiver Twin - Huth GmbH; Erlensee
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 370 x 72 x 250 mm / 14.6 x 2.8 x 9.8 inch
Notes

Analogue Sat receiver. OSD, Philips HIFI Sound System.
Sat-IF: 950-2050 MHz. Built-in modulator for UHF channel K30 ... K39

Made in Hungary.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)

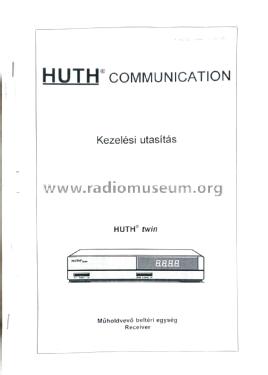

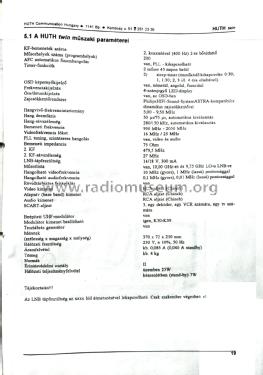

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
