Spulenkoppler, 3-fach, m.Spindel

Spulenkoppler, 3-fach, m.Spindel ; Vogel, C.J. Ledion, (ID = 254600) Radio part Spulenkoppler, 3-fach, m.Spindel ; Vogel, C.J. Ledion, (ID = 254601) Radio part
Spulenkoppler, 3-fach, m.Spindel ; Vogel, C.J. Ledion, (ID = 254602) Radio part Spulenkoppler, 3-fach, m.Spindel ; Vogel, C.J. Ledion, (ID = 254603) Radio part
Use red slider bar for more.

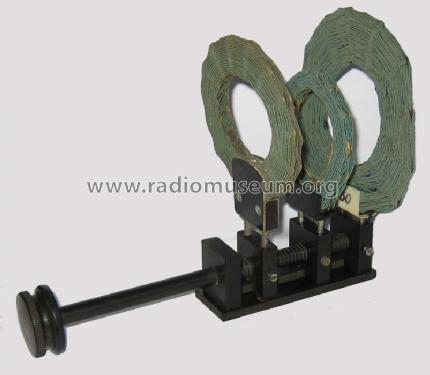

Spulenkoppler, 3-fach, m.Spindel ; Vogel, C.J. Ledion, (ID = 254600) Radio part
Vogel, C.J. Ledion,: Spulenkoppler, 3-fach, m.Spindel [Radio part] ID = 254600 804x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spulenkoppler, 3-fach, m.Spindel, Vogel, C.J. (Ledion), Berlin

Country:  Germany
Manufacturer / Brand:  Vogel, C.J. (Ledion), Berlin
Year: 1925 ?? Category: Radio part (not a module)
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Spulenkoppler, 3-fach, m.Spindel - Vogel, C.J. Ledion, Berlin
Material Moulded (Bakelite or Plastics)
Dimensions (WHD) 34 x 36 x 206 mm / 1.3 x 1.4 x 8.1 inch
Notes 3-fach Spulenkoppler mit 2 festen und einer mittels Spindel verschiebbaren Spule. Hartgummi?
Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
