Digital VTVM 615

Digital VTVM 615; Hycon Manufacturing (ID = 1896997) Equipment

Digital VTVM 615; Hycon Manufacturing (ID = 1960334) Equipment

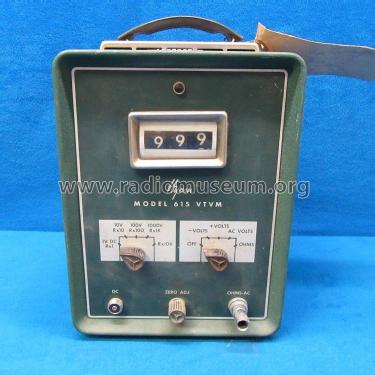

Digital VTVM 615; Hycon Manufacturing (ID = 227698) Equipment Digital VTVM 615; Hycon Manufacturing (ID = 1960335) Equipment
Digital VTVM 615; Hycon Manufacturing (ID = 1960336) Equipment Digital VTVM 615; Hycon Manufacturing (ID = 1960338) Equipment
Digital VTVM 615; Hycon Manufacturing (ID = 1960340) Equipment Digital VTVM 615; Hycon Manufacturing (ID = 1960342) Equipment
Use red slider bar for more.
Digital VTVM 615; Hycon Manufacturing (ID = 227698) Equipment
Hycon Manufacturing: Digital VTVM 615 [Equipment] ID = 227698 164x169
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital VTVM 615, Hycon Manufacturing Co.; Pasadena (CA)

Country:  United States of America (USA)
Manufacturer / Brand:  Hycon Manufacturing Co.; Pasadena (CA)
Year: 1956 Category: Service- or Lab Equipment
Valves / Tubes 5: 6BC7 6BC7 12AX7 12AU7 5687 0A2
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100-125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Digital VTVM 615 - Hycon Manufacturing Co.;
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 8.5 x 11 x 7.5 inch / 216 x 279 x 191 mm
Notes AC frequency response: 30 cycles to 3 mc.
Price in first year of sale 375.00 $
Literature/Schematics (1) Allied Radio Catalog Nº 150, 1956

Model page created by Vitor Oliveira. See "Data change" for further contributors.
