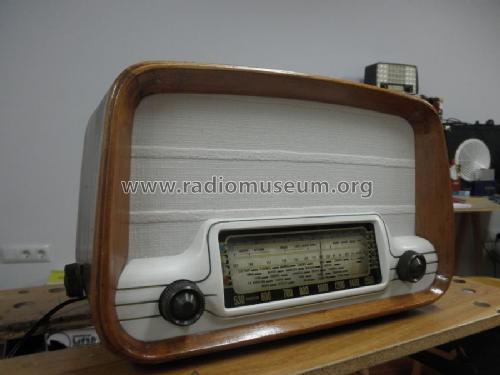

Iberia Radio SA;: 4153 D-23553 [Radio] ID = 1200001 933x704
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4153 D-23553, Iberia Radio SA; Barcelona

Country:  Spain
Manufacturer / Brand:  Iberia Radio SA; Barcelona
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AT6 6AQ5 6X4
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 4153 D-23553 - Iberia Radio SA; Barcelona
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 380 x 243 x 190 mm / 15 x 9.6 x 7.5 inch
Notes

Cuatro gamas de ondas:

  • OM de 530 a 1550 Kc
  • OP (Banda Pesquera) de 200 a 78 metros (1500 a 3846 Kc)
  • OC1 de 5,7 a 10 Mc
  • OC2 de 9,1 a 18 Mc

El primario de transformador de alimentación está conectado a chásis a través de una resistencia de 170 ohmios (R19) y un electrolítico (C27), en circuito supresor de zumbido.

Attention: Alimentación con autotransformador, no separación de red.

Literature/Schematics (1) -- Schematic
