Príncipe 3542-B Serie T

Príncipe 3542-B Serie T; Iberia Radio SA; (ID = 2025089) Radio Príncipe 3542-B Serie T; Iberia Radio SA; (ID = 2025033) Radio
Príncipe 3542-B Serie T; Iberia Radio SA; (ID = 2025091) Radio Príncipe 3542-B Serie T; Iberia Radio SA; (ID = 2025090) Radio
Príncipe 3542-B Serie T; Iberia Radio SA; (ID = 2025094) Radio Príncipe 3542-B Serie T; Iberia Radio SA; (ID = 2025093) Radio
Príncipe 3542-B Serie T; Iberia Radio SA; (ID = 2025096) Radio Príncipe 3542-B Serie T; Iberia Radio SA; (ID = 2025088) Radio
Príncipe 3542-B Serie T; Iberia Radio SA; (ID = 2025097) Radio Príncipe 3542-B Serie T; Iberia Radio SA; (ID = 2025098) Radio
Use red slider bar for more.
Príncipe 3542-B Serie T; Iberia Radio SA; (ID = 2025089) Radio
Iberia Radio SA;: Príncipe 3542-B Serie T [Radio] ID = 2025089 1400x1008
Select picture or schematic to display from thumbnails on the right and click for download.
For model Príncipe 3542-B Serie T, Iberia Radio SA; Barcelona

Country:  Spain
Manufacturer / Brand:  Iberia Radio SA; Barcelona
Year: 1949 ?? Category: Broadcast Receiver - or past WW2 Tuner

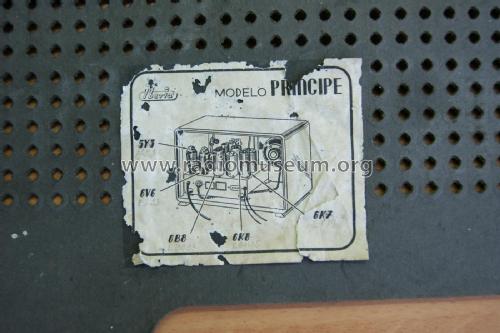

Valves / Tubes 5: 6K8 6K7 6B8 6V6 5Y3
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Príncipe 3542-B Serie T - Iberia Radio SA; Barcelona
Material Wooden case
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 410 x 340 x 281 mm / 16.1 x 13.4 x 11.1 inch

Model page created by Francisco Rivadulla Prieto. See "Data change" for further contributors.



All listed radios etc. from Iberia Radio SA; Barcelona
Here you find 234 models, 191 with images and 168 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
