RP-131

RP-131; Iberia Radio SA; (ID = 1310132) Radio
RP-131; Iberia Radio SA; (ID = 197620) Radio RP-131; Iberia Radio SA; (ID = 197621) Radio

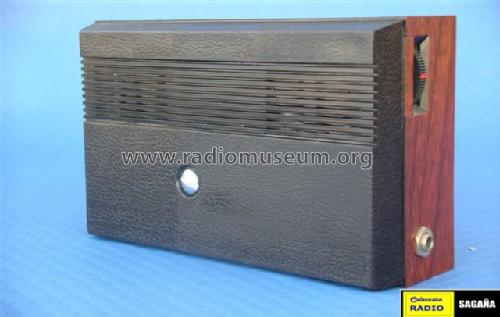

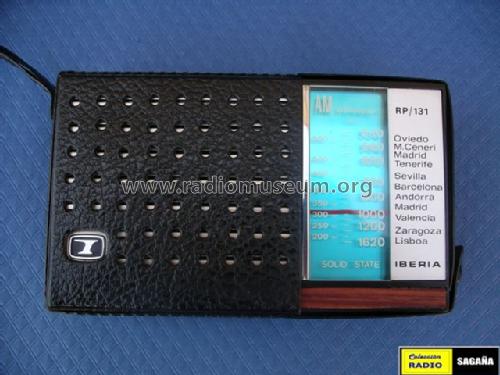

RP-131; Iberia Radio SA; (ID = 197622) Radio RP-131; Iberia Radio SA; (ID = 197623) Radio
Use red slider bar for more.
RP-131; Iberia Radio SA; (ID = 197620) Radio
Iberia Radio SA;: RP-131 [Radio] ID = 197620 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model RP-131, Iberia Radio SA; Barcelona

Country:  Spain
Manufacturer / Brand:  Iberia Radio SA; Barcelona
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: BF194 BF195 BF195 AC187 2N4291 AC186 AC187 AA119 AA119 BA100
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 × AA 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: RP-131 - Iberia Radio SA; Barcelona
Material Plastics (no bakelite or catalin)
Dimensions (WHD) 145 x 86 x 43 mm / 5.7 x 3.4 x 1.7 inch
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)

Model page created by Salvador Galan-Ocaña. See "Data change" for further contributors.
