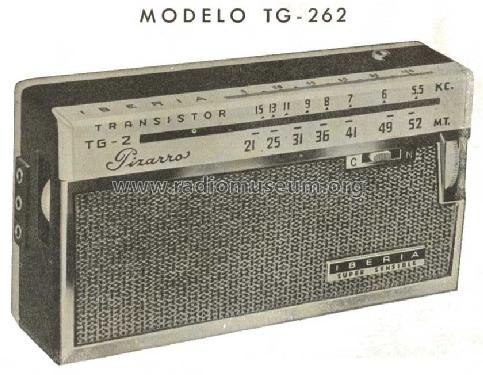

Pizarro TG-262
Iberia Radio, S.A.; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Iberia Radio, S.A.; Barcelona
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 94652

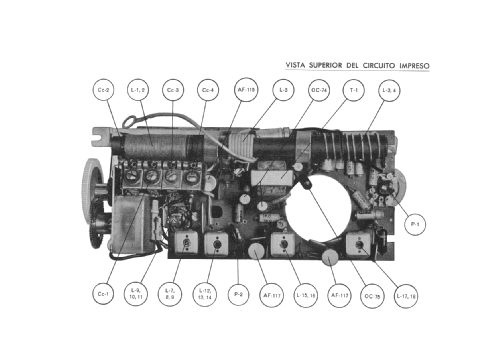

foto del manual

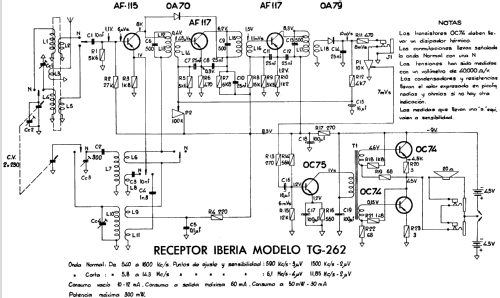

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 6 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.8 cm = 3.1 inch
- Power out
- 0.3 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Pizarro TG-262 - Iberia Radio, S.A.; Barcelona
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
Caja de poliestireno antichoc. Frontis y marcos metálicos
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
